Similarly, use this RPM value to read the No. of turns (N) by referring to the table of ‘Motor
Variable Pitch Pulley Data’. The variable pitch pulley for motor shall be adjusted to this ‘N’ in
order to get 3483cfm. First, adjust the motor pulley to 0 turns. Then, make 0.25 turns on the
pulley. Cross check the dimension ‘X’, and it stands for regulation space of motor pulley. In
this case, X = 1mm.
Pulley pitch factory set point: the table, No. of turns = 1.5N.

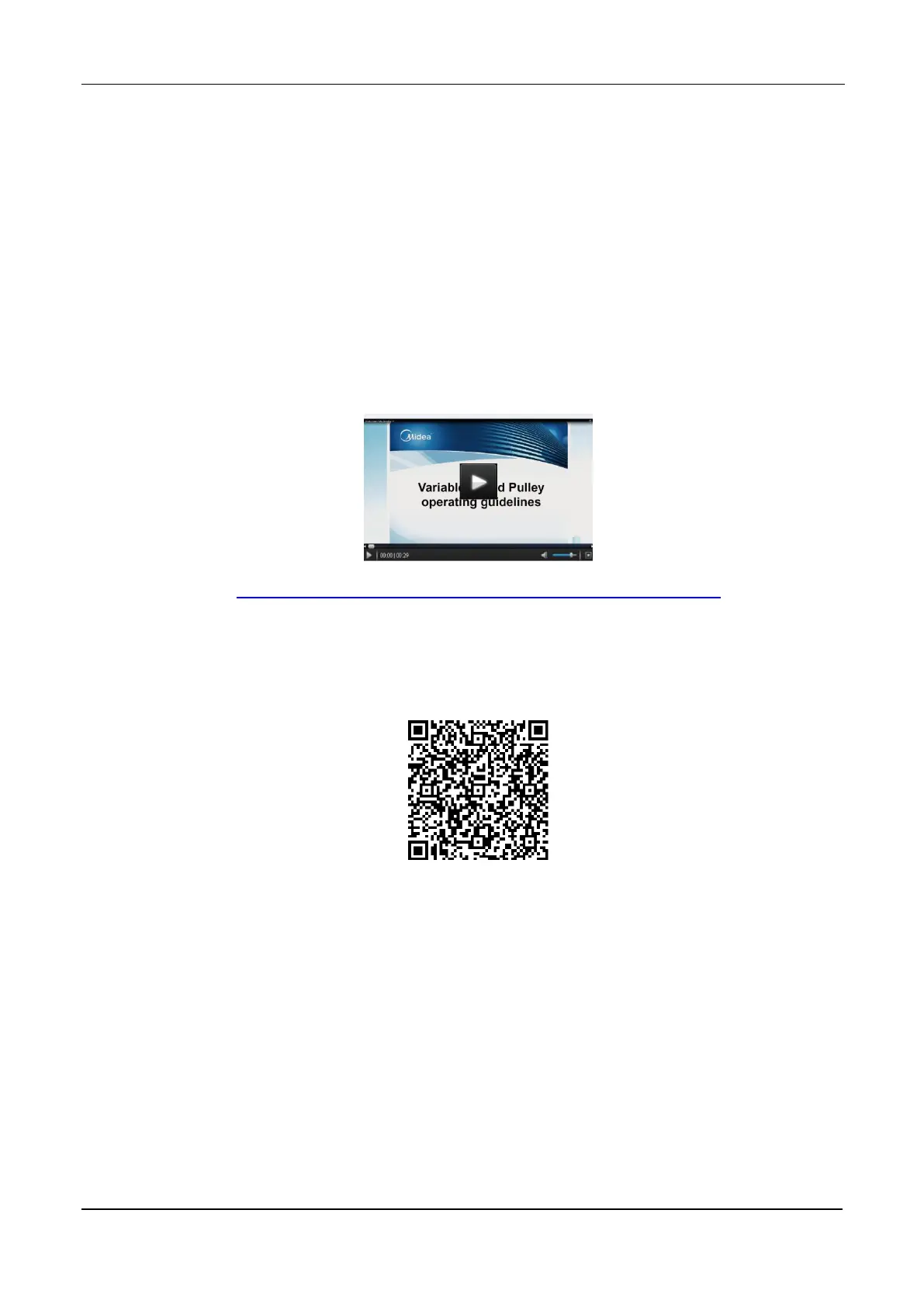

Video for Variable Speed Pulley Operating Guidelines
Click for video:
http://video.midea.com/public/2016/01/29/20160129_1528c9ec886_r1.mp4
Scan for video: (Only for iPhone, iPad, etc.)
To Next Page
