Midea MRCT-062CWN1-R(C) User Manual

DM16‐01.01.27en  RooftopClimaCreatorseries
108 Service manual
Model Wires for power supply Type of wires
MRCT-062CWN1-R(C) 3×6mm² + 2×3mm²
3 × UL1015 9AWG
2 × UL1015 12AWG
MRCT-075CWN1-R(C) 3×10mm² + 2×6mm²
3 × UL1015 7AWG
2 × UL1015 9AWG
MRCT-085CWN1-R(C) 3×10mm² + 2×6mm²
3 × UL1015 7AWG
2 × UL1015 9AWG
MRCT-100CWN1-R(C) 3×10mm² + 2×6mm²
3 × UL1015 7AWG
2 × UL1015 9AWG
MRCT-125CWN1-R(C) 3×16mm² + 2×10mm²
3 × UL1015 5AWG
2 × UL1015 7AWG
MRCT-150CWN1-R(C) 3×16mm² + 2×10mm²
3 × UL1015 5AWG
2 × UL1015 7AWG
MRCT-175CWN1-R(C) 3×25mm² + 2×10mm²
3 × UL1015 3AWG
2 × UL1015 7AWG
MRCT-200CWN1-R(C) 3×25mm² + 2×10mm²
3 × UL1015 3AWG
2 × UL1015 5AWG
MRCT-250CWN1-R(C) 3×35mm² + 2×16mm²
3 × UL1015 2AWG
2 × UL1015 5AWG
MRCT-300CWN1-R(C) 3×35mm² + 2×16mm²
3 × UL1015 2AWG
2 × UL1015 7AWG

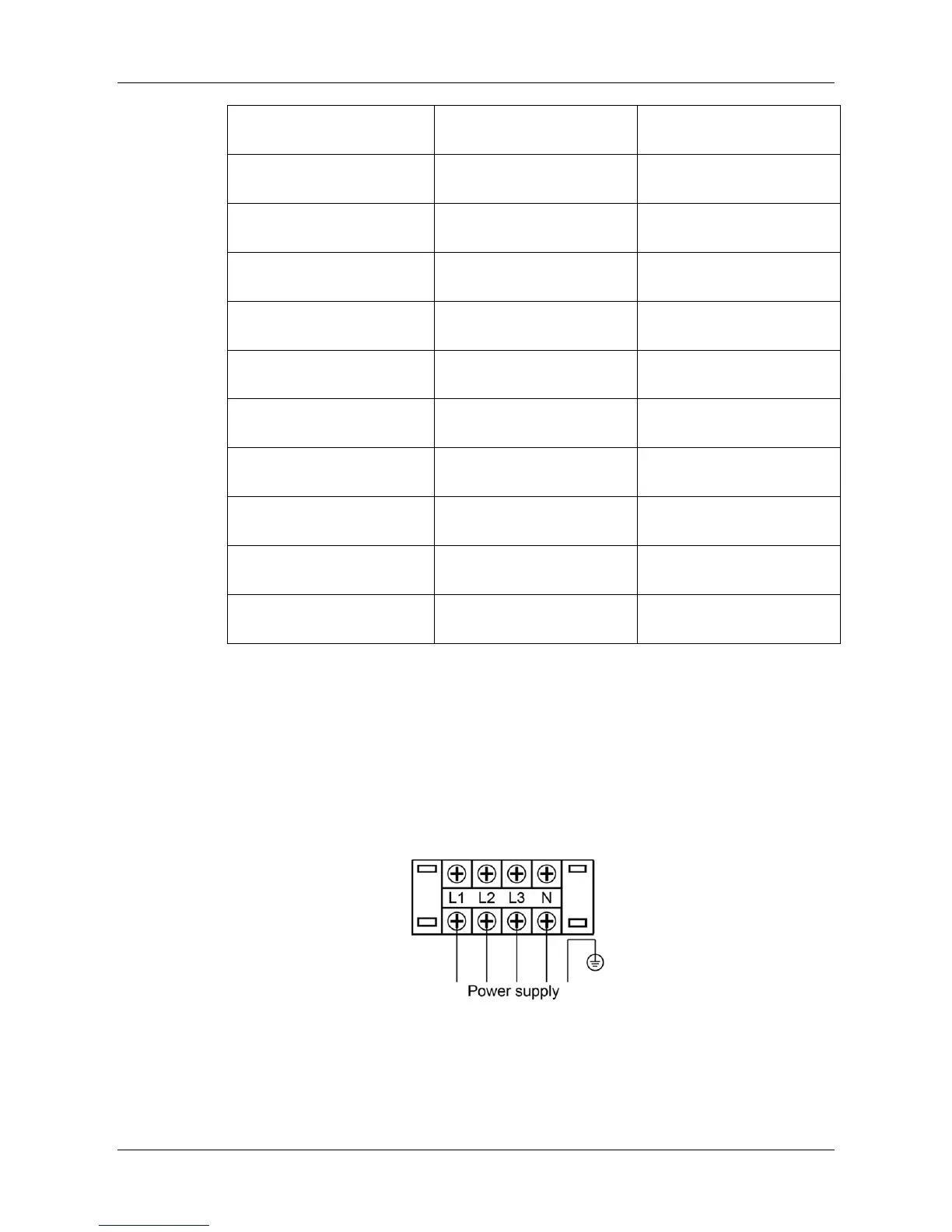

 Power supply wiring diagram
MRCT-062CWN1-R(C), MRCT-075CWN1-R(C), MRCT-085CWN1-R(C),
MRCT-100CWN1-R(C), MRCT-125CWN1-R(C), MRCT-150CWN1-R(C),
MRCT-175CWN1-R(C), MRCT-200CWN1-R(C), MRCT-250CWN1-R(C),
MRCT-300CWN1-R(C):
 Wired controller wiring diagram (Standard wired controller)
