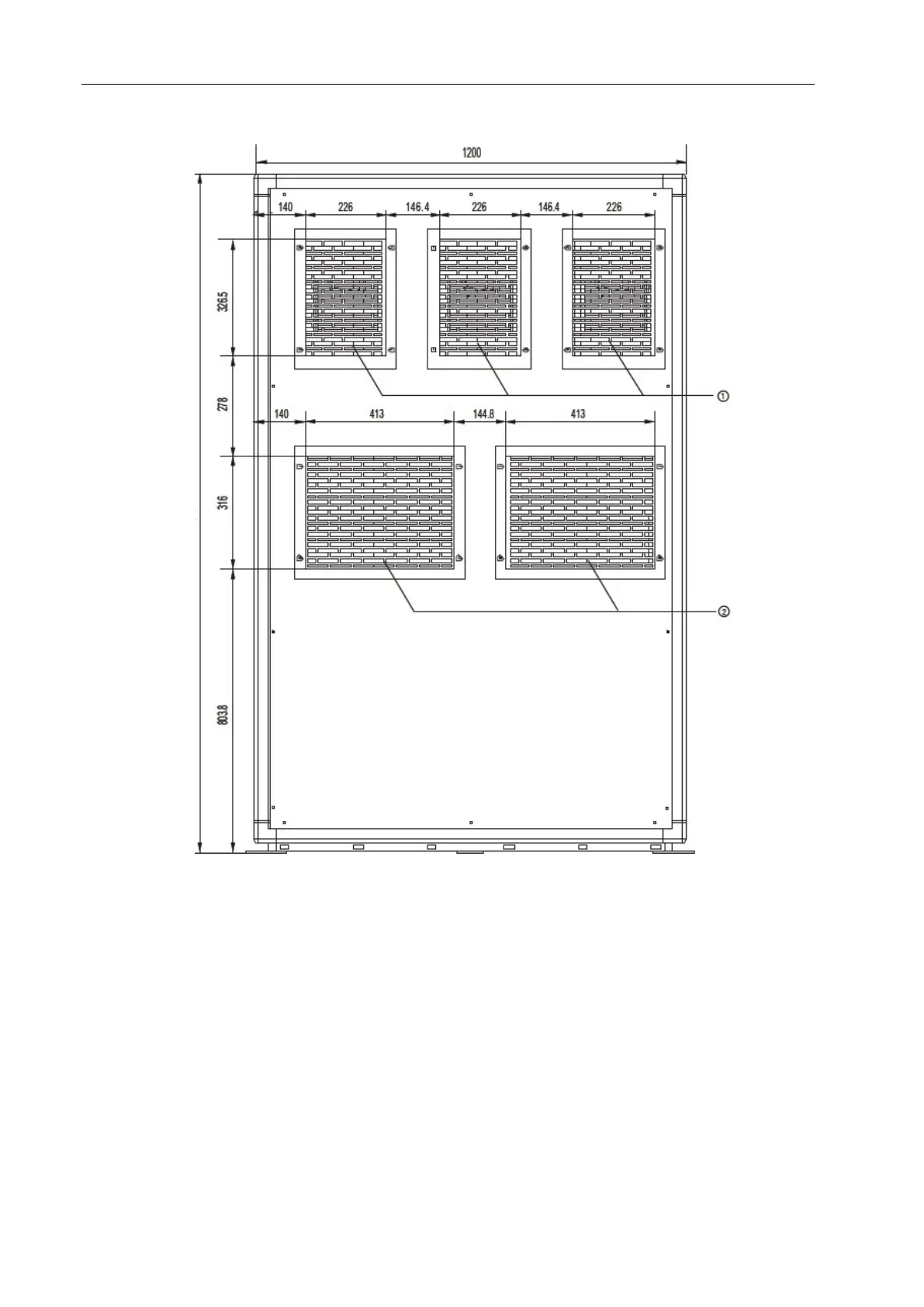

Dorsal view: KCD-120L/S-JZ
Notes:
Outdoor side air outlet
Fresh air inlet
Sealing gaskets
Burglar mesh (User provides)
Location
Units should be installed away from the heat source and vapor source.
There is no any obstruction to block the air circulation.
The location should be able to support the unit weight, and will not increase the running
noise and vibration.
The location should be convenient to do the unit piping, wiring and draining condensing
water.
