removed first, as well as connective wires between motor and capacity of motor
assembly.
Fan motor subassembly is very heavy, please be careful during maintaining, otherwise
physical injury would be caused.
Remove all screws from safety drain tray, and take off the safety drain tray.
Remove all bolts from fan assembly, according to which orders to take off the fan motor
assembly.
Horizontal pushing the fan motor assembly, until it cannot move any further, and then
lift up slightly and take down to remove it.

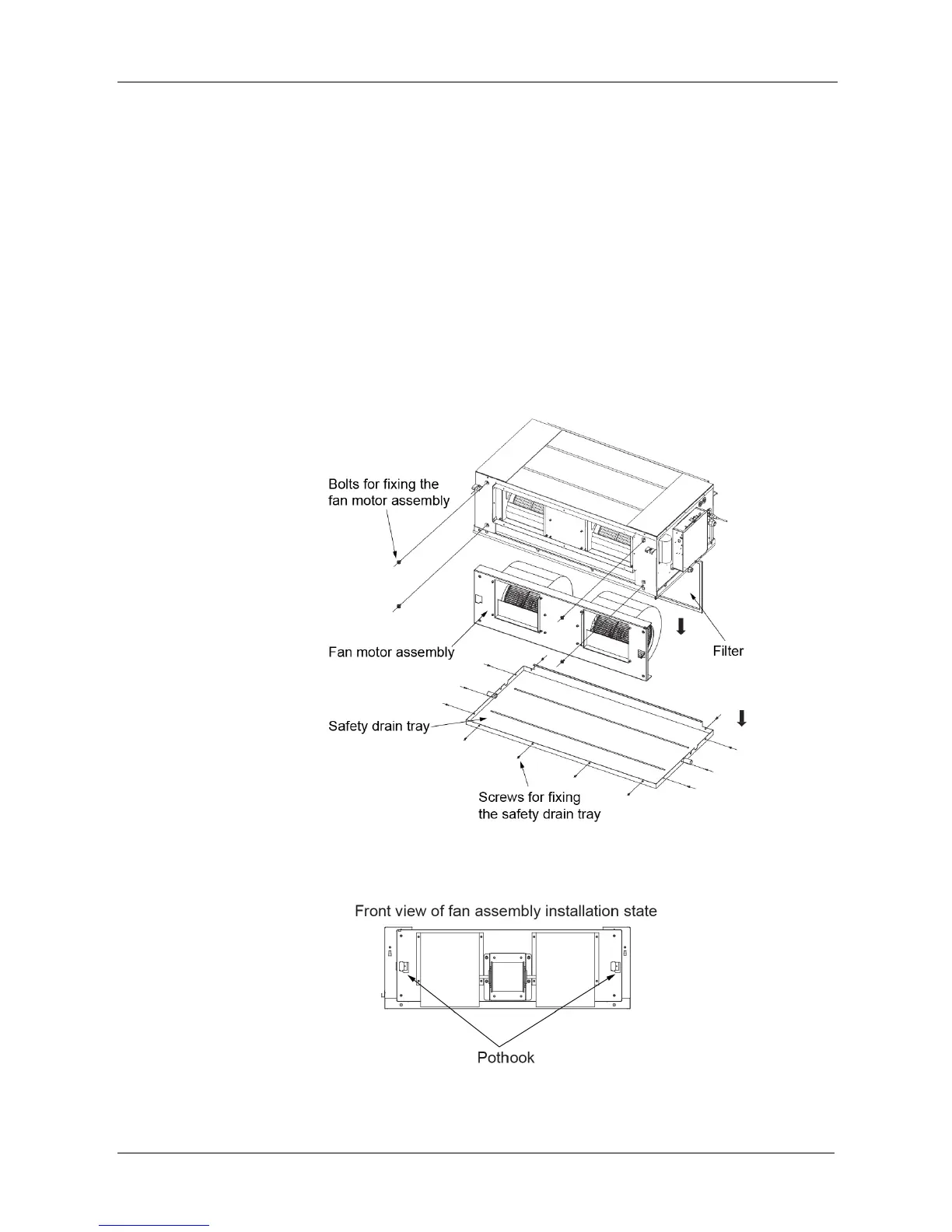

Fan motor assembly structure as following figure.
