Midea Tropical R410A High Efficient Duct Technical Manual 50Hz MCAC-UTSM-201707
71
Installation the connecting pipe
Connect the drain pipe;
Wiring;
Test operation.
At delivery, the package of indoor and outdoor units should be checked and any damage should
be reported immediately to the service agent.
When handling the unit, take into account the following:
Fragile, handle the unit with care.
Move the unit as originally package as possible.
When lifting the unit, always use protectors to prevent belt damage and pay attention to the
position of the unit’s center of gravity.
2. Installation of the Indoor Units
2.1 Installating indoor units

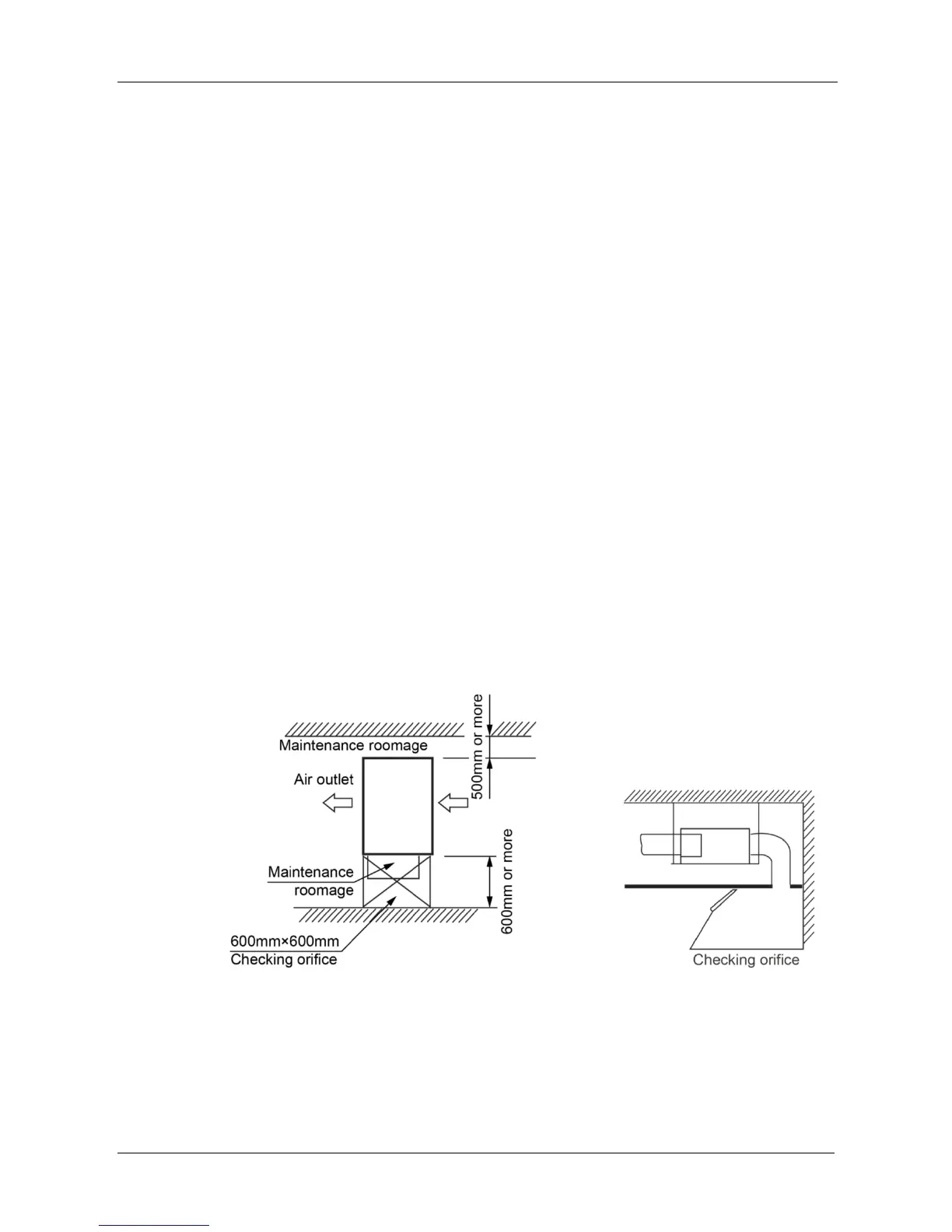

As the following picture, when install the indoor unit, select the enough solid and level site
with enough space for installation and maintance.
The inspection orifice should be enough larger to repair and maintenance the unit.
Ensure that the minimum drain gradient is over 1/100.
Please refer to the following figure for the distance measurement between the screw bolts.
Please install with screw bolts. Use Ф10 or bigger screws.
The handling to the ceiling varies from constructions consult the construction personnels for
