Page 11
Indoor Unit
Installation

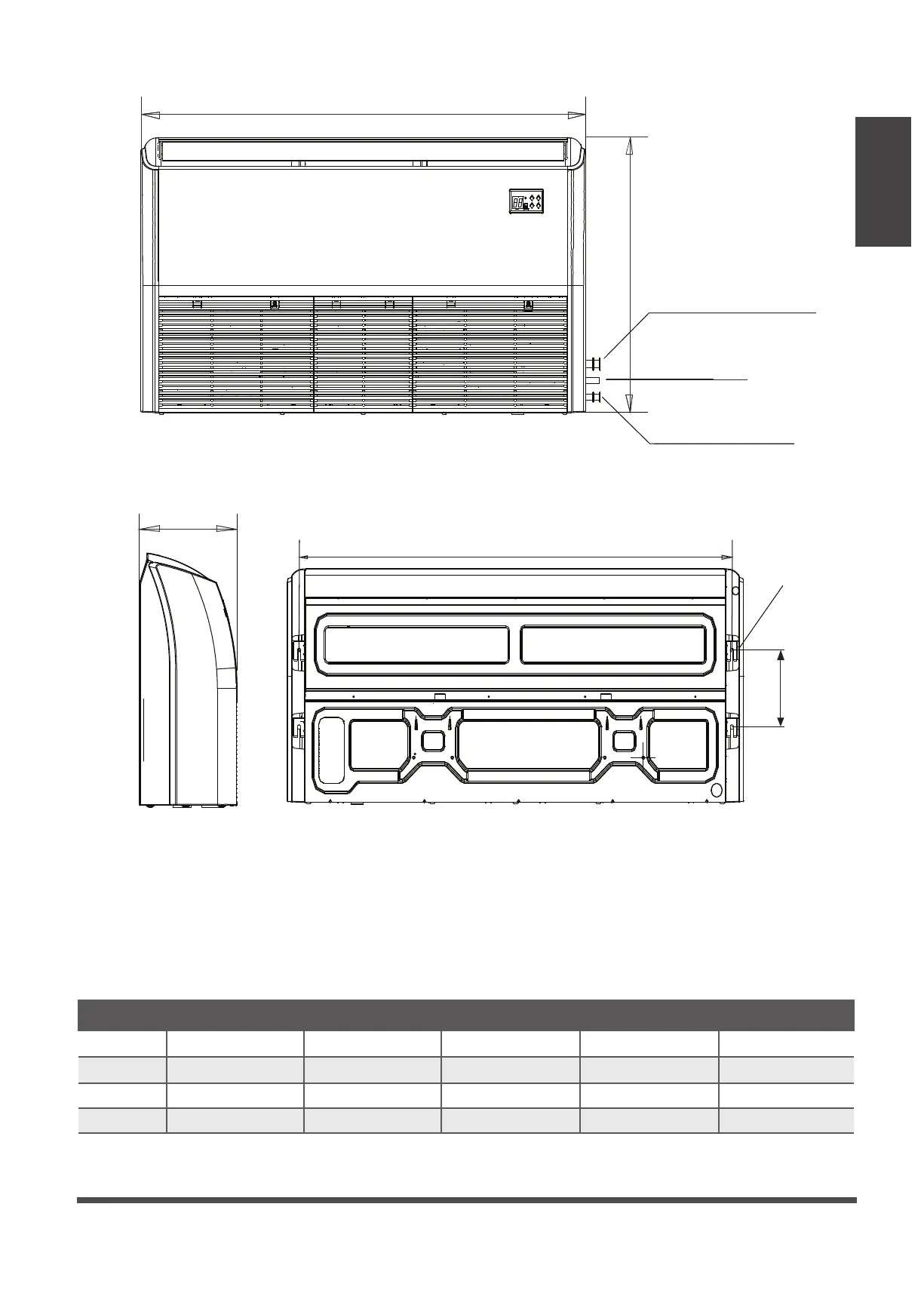

Fig. 4.3
Refrigerant pipe
connection
(D. gas side)
Refrigerant pipe
connection
(E. Liquid side)
Drain point
Hook
A
C
D
E
B
Table 4.1: Indoor parts installation size
MODEL(Btu/h) Length of A (mm/inch) Length of B (mm/inch)
18K~24K 1068/42 675/26.6
30K~48K 1285/50.6 675/26.6
36K~48K 1650/65 675/26.6
60K 1650/65 675/26.6
Length of C (mm/inch) Length of D (mm/inch) Length of E (mm/inch)
235/9.3 983/38.7 220/8.7
235/9.3 1200/47.2 220/8.7
235/9.3 1565/61.6 220/8.7
235/9.3 1565/61.6 220/8.7
