Midea MV5-X280W/V2GN1-AU User Manual

MCAC-VTSM-2015-10 R410A All DC Inverter V5 X Series 50Hz
Specifications & Performances 25

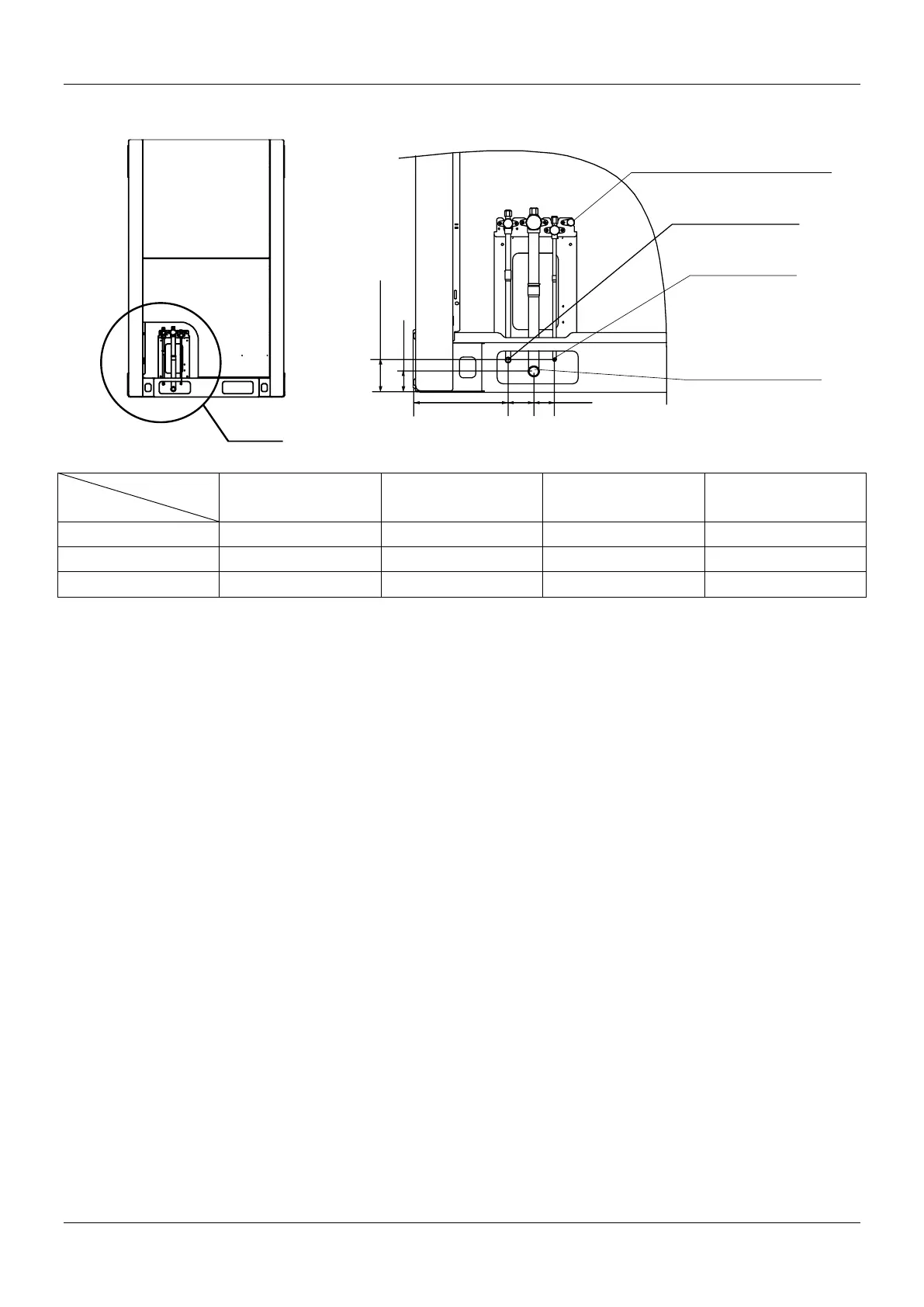

2.2 Section dimensions
Specifications (Unit: mm)
HP
Size
8/10
12
14/16
18
A
Φ12.7
Φ15.9
Φ15.9
Φ19.1
B
Φ22.2
Φ28.6
Φ25.4
Φ31.8
C
229
229
244
244
R
Liquid side
Detect the pressure/ Refrigerant
replenishment/vacuumize
Gas side
Oil balance pipe
Gauge point
C
(Piping diameter is ΦA)
(Piping diameter isΦB)
(For combined outdoor
units, the connection
piping diameter is
Φ5/16in.(Φ8mm))
63(2-1/2)
50(2)
50(2) 77(3-1/32)

Midea MV5-X280W/V2GN1-AU Specifications

General

Brand	Midea
Model	MV5-X280W/V2GN1-AU
Category	Air Conditioner
Language	English
