MCAC-VTSM-2015-10 R410A All DC Inverter V5 X Series 50Hz
Installation 87
If miscellaneous articles are piled around the outdoor unit, such articles must be 800mm below the top of the
outdoor unit. The articles must be 800mm below the top of the outdoor unit. Otherwise, a mechanical
exhaust device must be added.
Snow-proofing

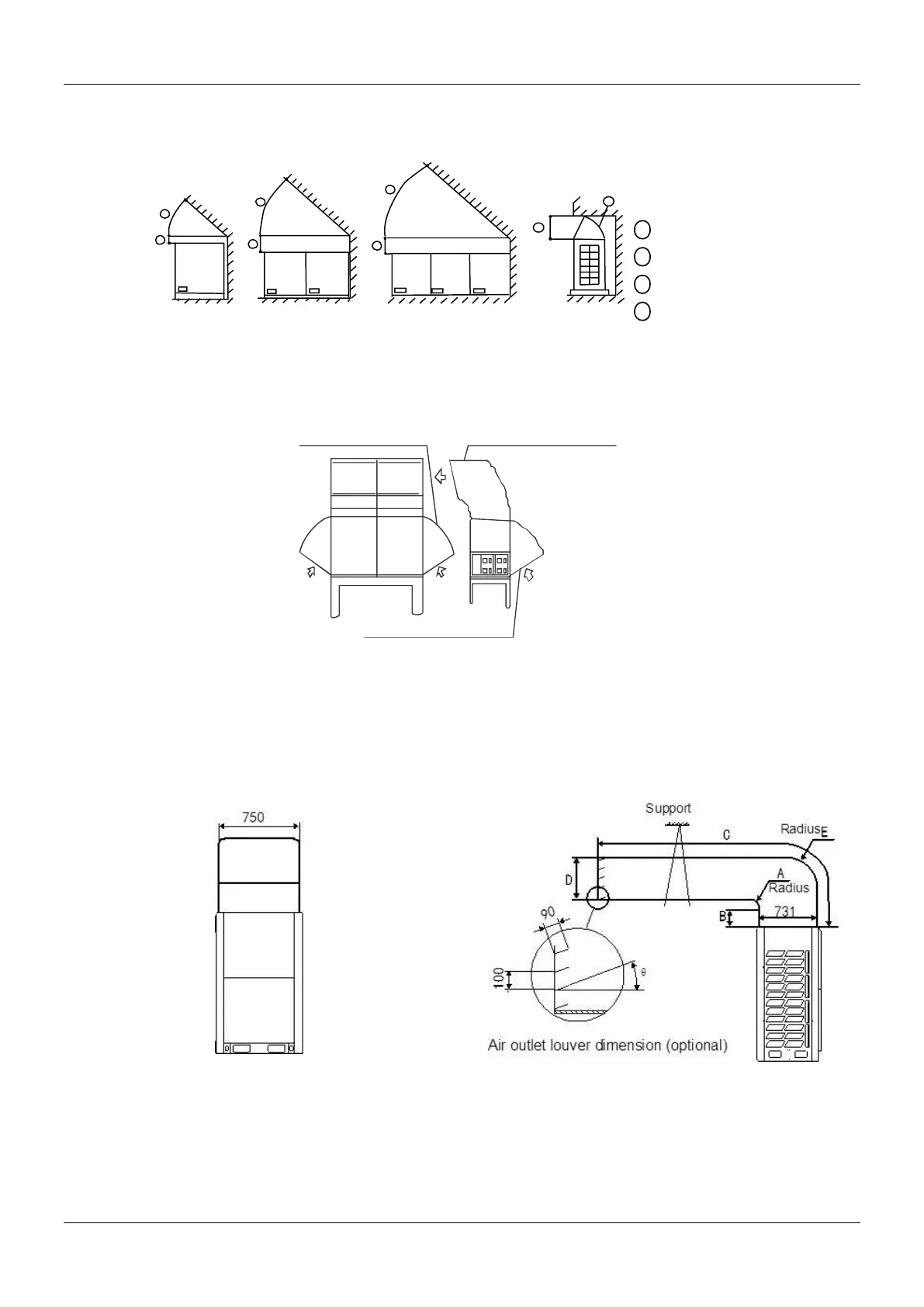

In snowy areas, accessories should be installed to prevent snow from entering the unit. (See the figure below)
(Defective facilities may cause malfunction.) Please lift the bracket higher and install snow shield on the air
inlet and air outlet.
2. Air ventilation assembly installation
Ventilation assembly is provided on site by an installation professional. When installing, please take off the
mesh cover first, and then install the unit using the following method.
2.1 Installation of 8, 10, 12HP
Example A
Unit: mm
A
B
C
D
>45°
>1000(39-3/8)
>300(11-7/8)
Airflow deflector
Front view
B
A
Side view
C
D
B
A
Front view
B
A
Front view
A
>45°
C
>1000mm
B
>300mm
D
Airflow deflector
Snow shield for air outlet
Snow shield for air inlet
Snow shield for air inlet
