3 Installation Space Requirements
For single unit installation
For single row installation

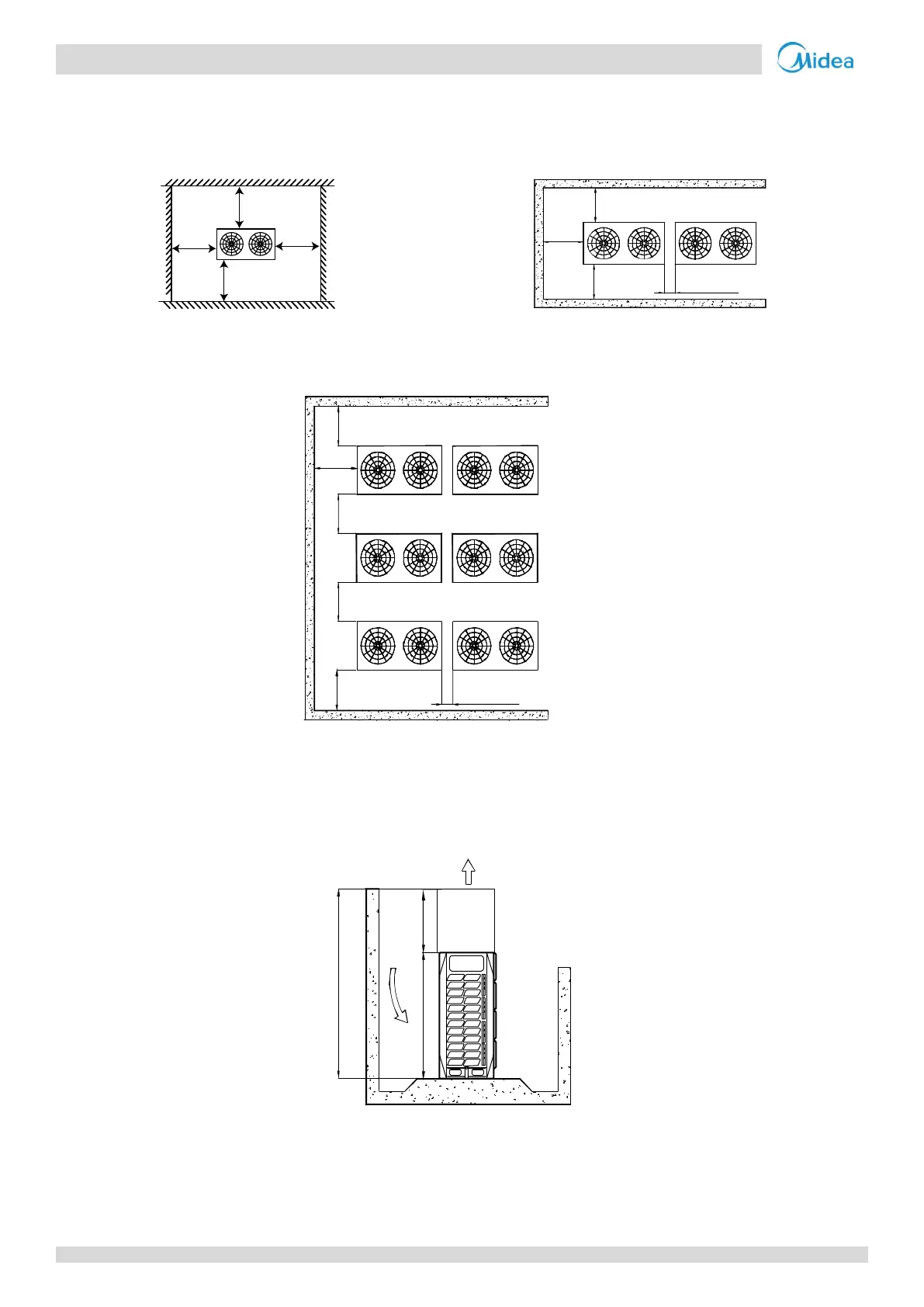

Figure 2-3.1: Single unit installation (unit: mm)
Figure 2-3.2: Single row installation (unit: mm)
For multi-row installation
Figure 2-3.3: Multi-row installation (unit: mm)
Depending on the height of adjacent walls relative to the height of the units, ducting may be required to ensure proper air
discharge. In the situation depicted in Figure 2-3.4, the vertical section of ducting should be at least H-h high.
Figure 2-3.4: Top of unit below top of adjacent wall
