Installation
Instructions
NOTICE
Save carton and these Installation
Instructions for future reference. The
carton is the best way to store unit during
winter, or when not in use.
If any piece of hardware is missing, DO
NOT INSTALL THE PRODUCT, and call
customer service at 1-866-646-4332.
* Denotes extra hardware provided in
separate bag.

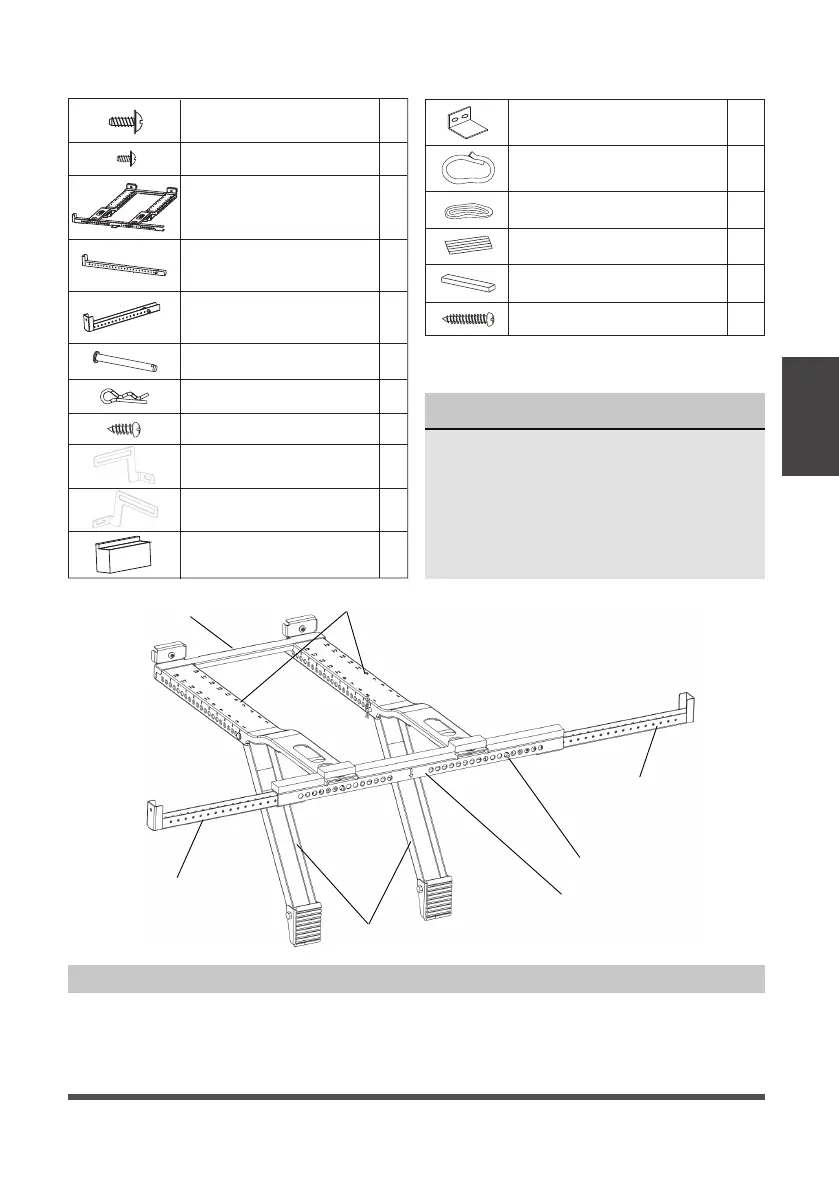

Installation Hardware
Side Arm Foam 2
Right Extension Arm – Short
(For 22”-26” windows)
1
Cotter Pin
2*
Open Window Bracket – LH 1
Open Window Bracket – RH
1
Main Support Pin
2*
Right Extension Arm
(For 26”-36” windows)
1
1Main Bracket
1/2” Type B Screw 2*
1/4” Type B Screw 2*
1/2” Type A Screw 3*
Window Sash Lock
Window Sash Foam
Window Sealing Foam
Bracket Sealing Foam
Additional Side Arm Foam
1” Type A Screw 2*
2
1
1
1
1
Angled Support Arms
Horizontal Bracket
Spring Push Pin
Main Support
Right
Extension
Arm
Left
Extension
Arm
Rear Cross
Brace
Fig. 1
Lower sash must open sufficiently to allow a clear vertical opening of 13.75 inches. Side
louvers and the rear of the AC must have clear air space to allow enough airflow through
the condenser for heat removal. The rear of the unit must be outdoors, not inside a
building or garage. Find the center of your window and lightly mark with a pencil.
