ASSEMBLY INSTRUCTIONS

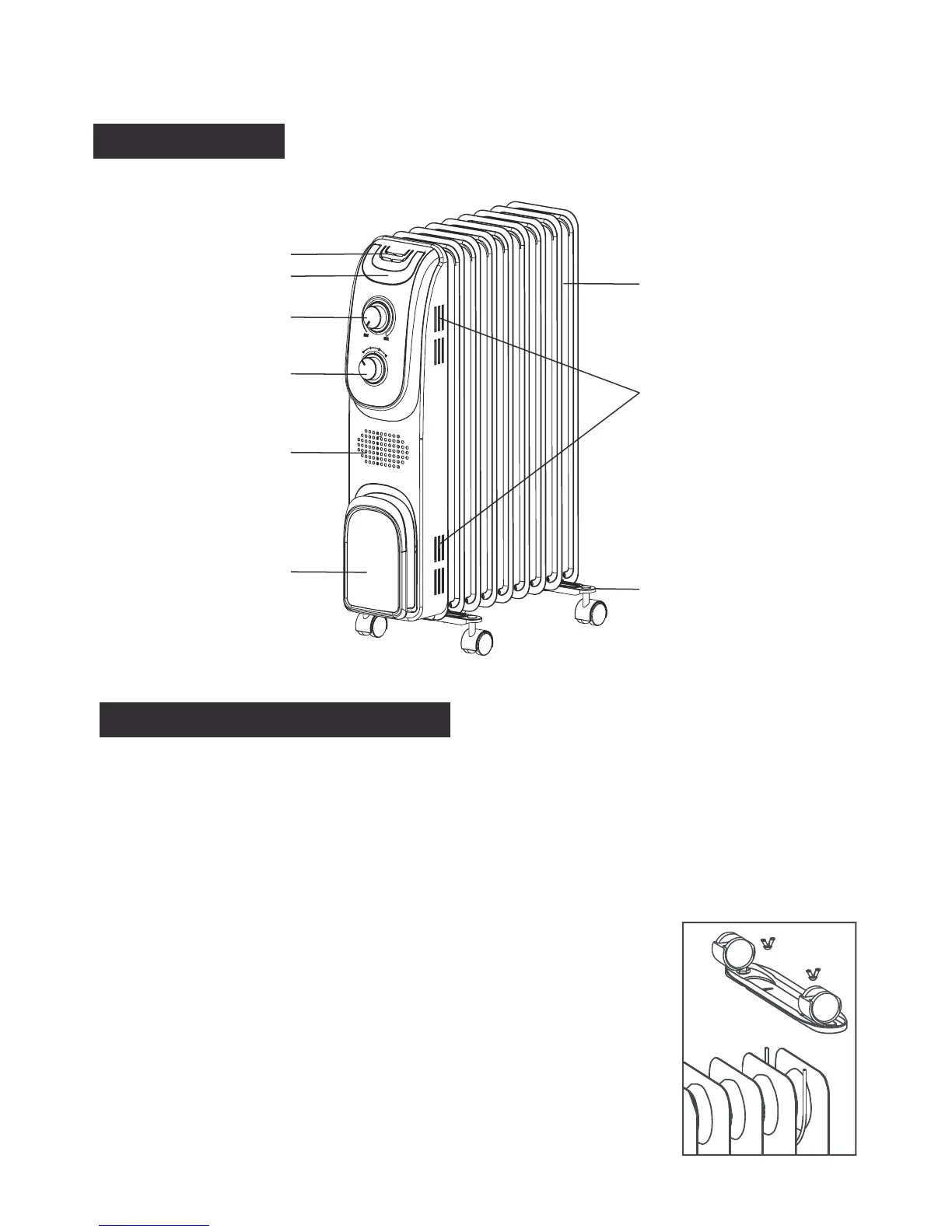

PART FIGURE
WARNING: IN ORDER TO AVOID OVERHEATING, DO NOT COVER
THE HEATER.
Unpack your heater and find the wheel-holding plate and butterfly nuts
between the fins assemblies.
1. Make sure the heater is unplugged and in the "0" position.
2. Turn the heater upside down.
3. Attach the wheel-holding plates onto the heater as
Fig.1 shows. The U plate is fixed between the last
tow fins and the other one is fixed under metal
control box.
Fix the castors to the vertical axis of both the wheel
holding plates.
4. Insert the butterfly nuts and tighten them securely.
5. Turn the heater upright.
Your heater is now ready to use.
Radiating unit
Air inlet
Caster assembly
Power switch knob
Air inlet
Cord wrap
Carry handle
Thermostat knob
Air inlet
