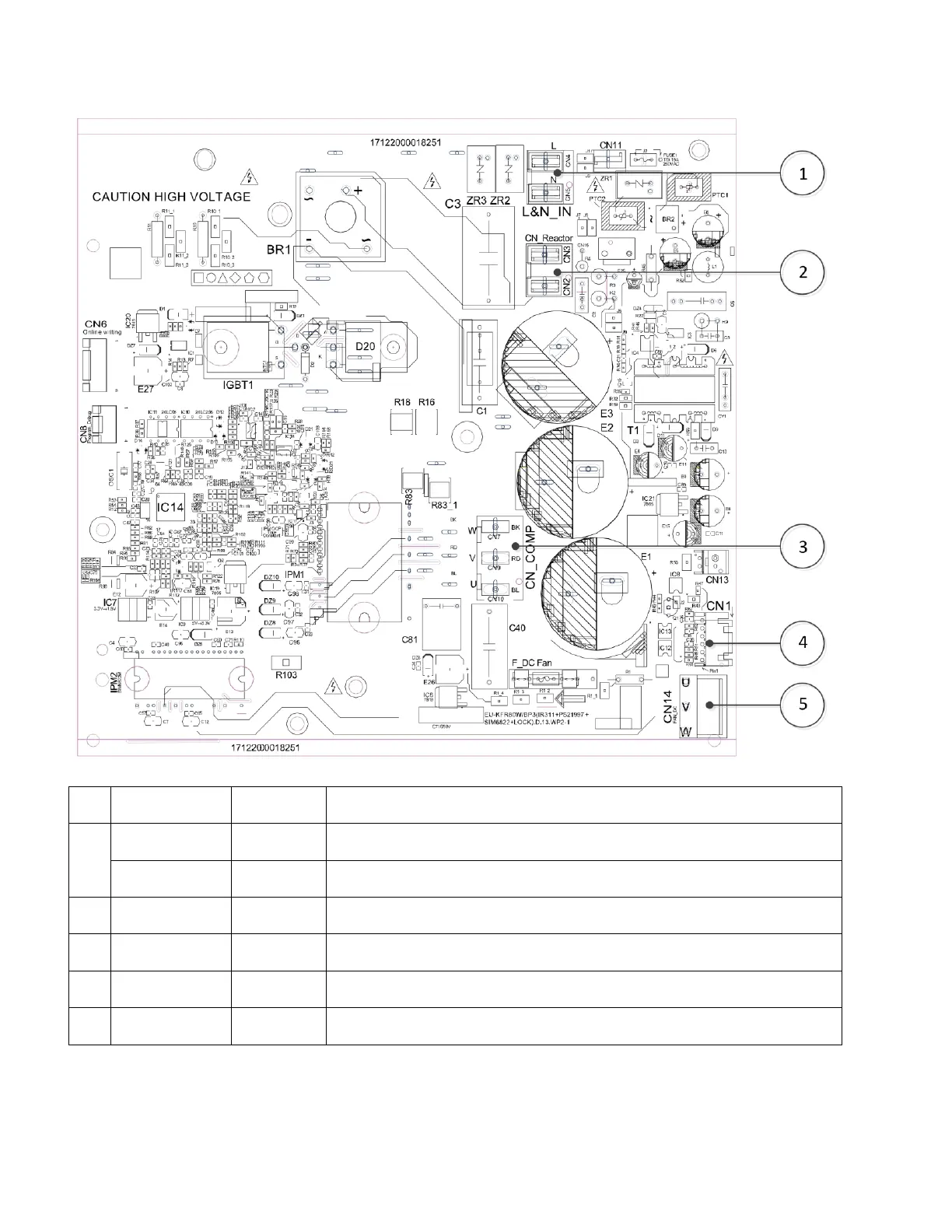

IPM board of M2OF-18HFN1-M, M3OF-27HFN1-M, M2OH-18HFN1-M, M2OI-18HFN1-M, M3OJ-
27HFN1-M, M3OI-28HFN1-M, M4OG-36HFN1-M
No.
Name
CN#
Meaning
1
CN4
CN4
connect to main board L-Out
CN5
CN5
connect to main board N-Out
2
CN_Reactor
CN2/CN3
connect to reactor
3
CN_COMP
CN_COMP
connect to compressor
4
CN1
CN1
connect to main board CN21
5
AN_DC
CN14
connect to outdoor DC fan
