Midea ODMFI-E-2110 - Page 44

44

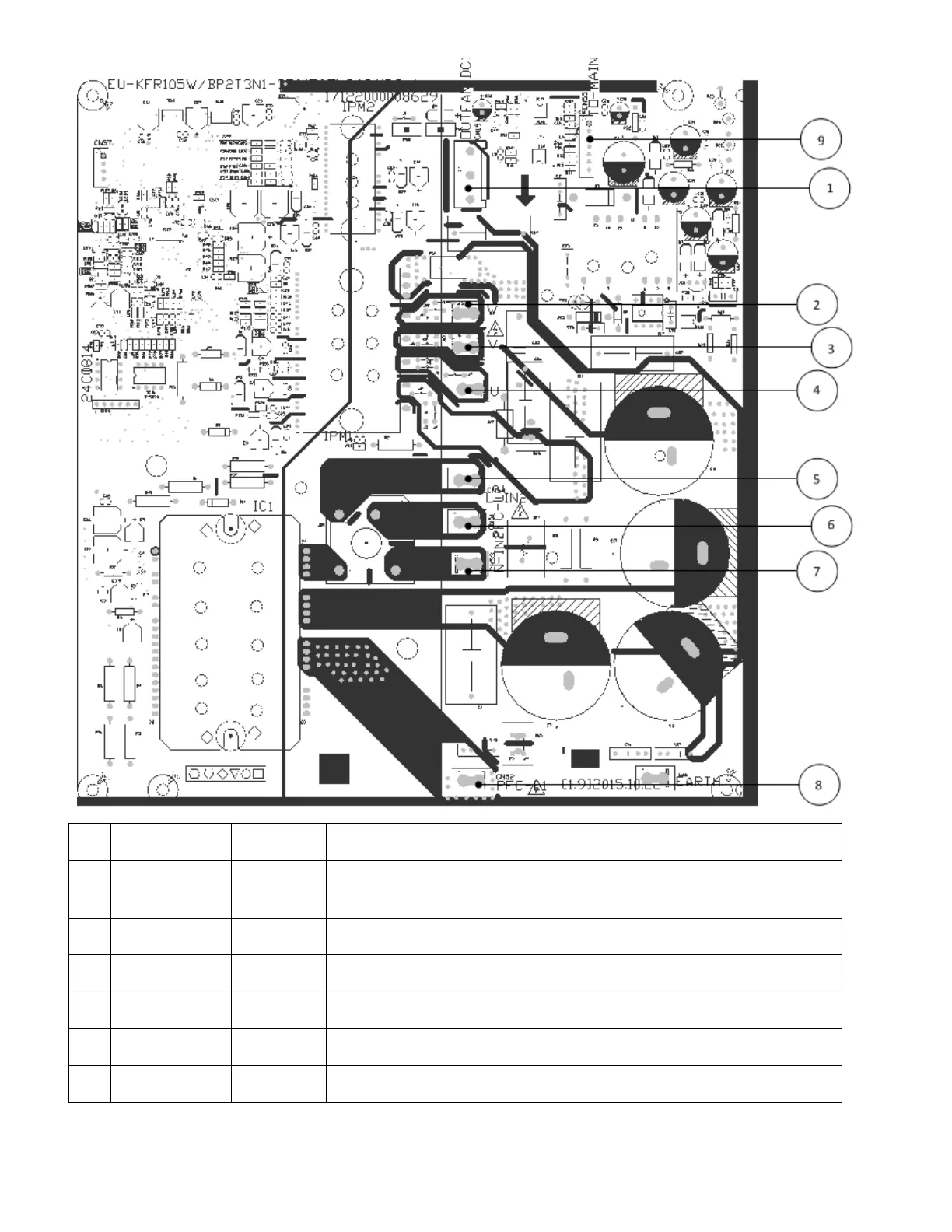

IPM board of M4OF-36HFN1-M & M3OH-27HFN1-M
No.
Name
CN#
Meaning
1
OUT FAN
(DC)
CN19
Connect to DC motor
2
W
J13
Connect to compressor W
3
V
J10
Connect to compressor V
4
U
J7
Connect to compressor U
5
CN54
CN54
Connect to main PCB CN6
6
CN51
CN51
Connect to PFC inductor
