Midea PTAC Series User Manual

SUGGESTIONS:
1. TO Size transformer, use the following equation:
Quantity of PTAC units x 1va=Transformer Size (va)
Example: 110 PTAC units x1va=110va Transformer
2. Following are American Wire Gauge recommended sizes:
AWG WIRE SIZE NO.
24
22
20
18
16
MAX. LENGTH (ft)
400
600
900
1500
2000
6. Unit components

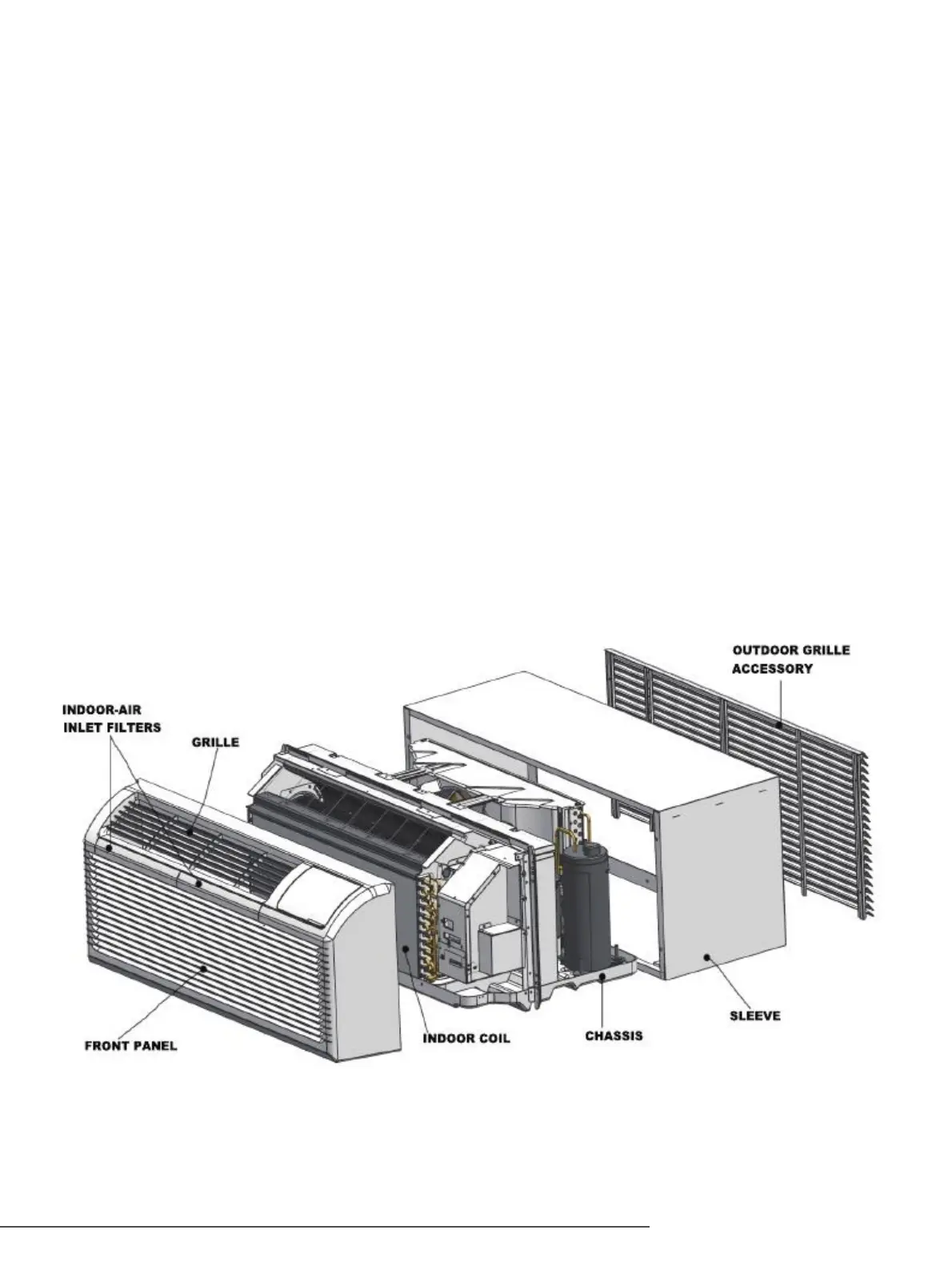

Decomposition figure
