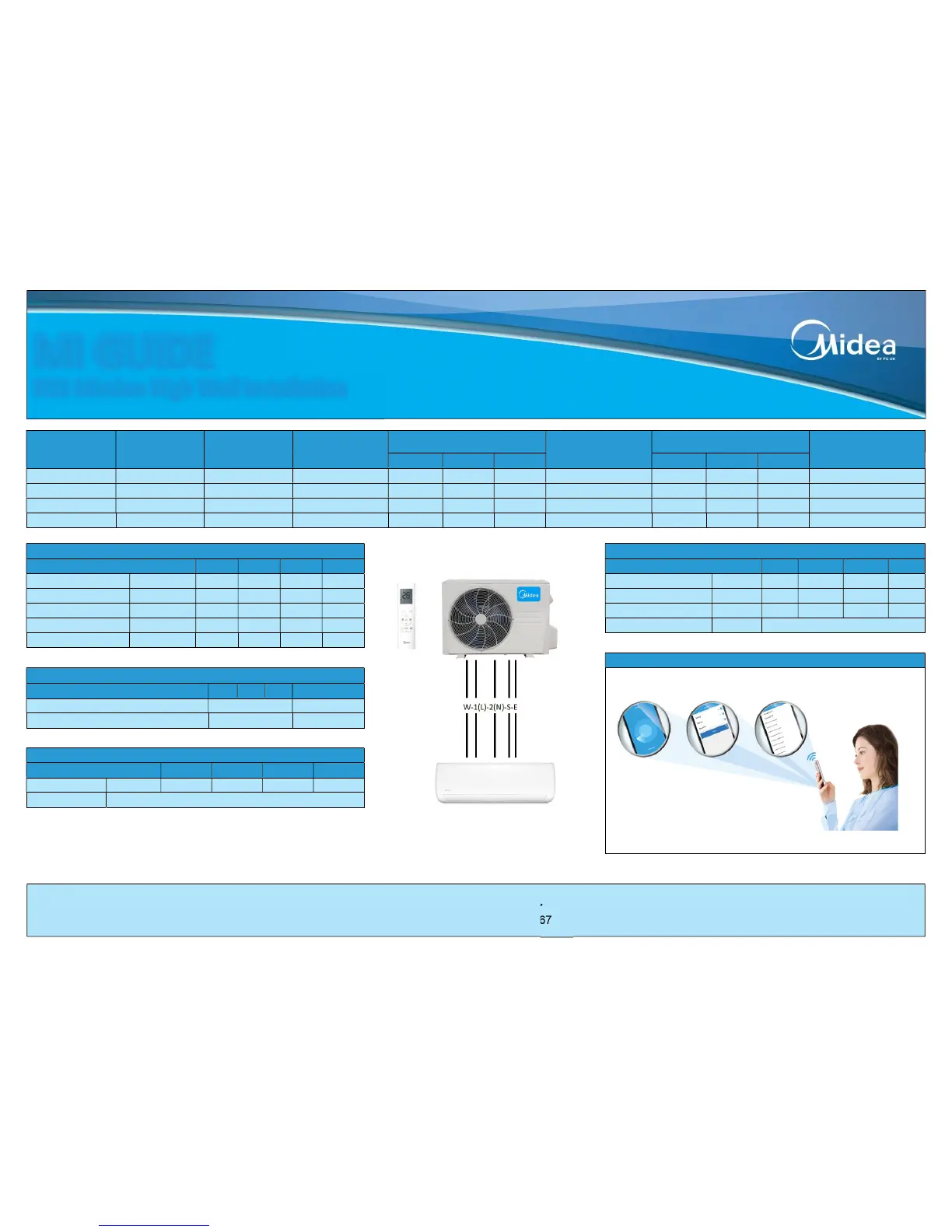

Midea R32 - Page 2

Indoor
Model
Outdoor
Model
Cooling
Duty (kW)
Heating Duty
(kW)
Outdoor Dimensions
Outdoor Weight
(Kg)
Indoor Dimensions
Indoor
Weight(Kg)
W
(mm)
D
(mm)
H
(mm)
W
(mm)
D
(mm)
H
(mm)
MB-09N8D6-i MBT-09N8D6
3.3 3.75 800 333 554 28.5 730 198 293 7.4
MB
-
12N8D6
-
I
MBT
-
12N8D6
4.
5
4.
9
800
333
554
28.5
810
200
300
8.3
MB-18N8D6-I
MB-18N8D6 6.21 6.97 800 333 554 36.9 980 225 325 10.7
MB
-
24N8D6
-
I
MB
-
24N8D6
8.4
4
9.4
3
845
363
702
49.7
1090
235
338
13
Piping Information
Model: 09 12 18 24
Liquid Line
Inch
1/4
1/4
1/4
3/8
Gas Line Inch 3/8 3/8 1/2 5/8
Drain Line
Φ mm
16
16
16
16
Max
Length
M
25
25
30
50
Max Height M 10 10 20 25
Electrical Wiring Information
Model: 09 12
18
24
Mains
Outdoor
3x1
.5mm
²
3x
2.5
mm²
Interconnecting/Indoor Power 5x1.5mm² 5x2.5mm²
Power Supply Information
Model: 09 12 18 24
Outdoor
Ph/A
1/
16
1/
16
1/
16
1/
20
Indoor Powered from Outdoor Unit
Refrigerant Charging Information
Model: 09 12 18 24
Pre
–
Charge
Kg
0.
65
0.
65
1.25
1.6
Charged to M 5 5 5 5
Additional
g/m
12
12
12
24
Refrigerant
Type
R32
Comes With
Wi Fi Control as Standard
MI GUIDE
R32 Mission High Wall Installation
Please contact your Midea support team if you have any issues during the installation and commissioning process.
Midea UK Tel: 0191 263 6367
