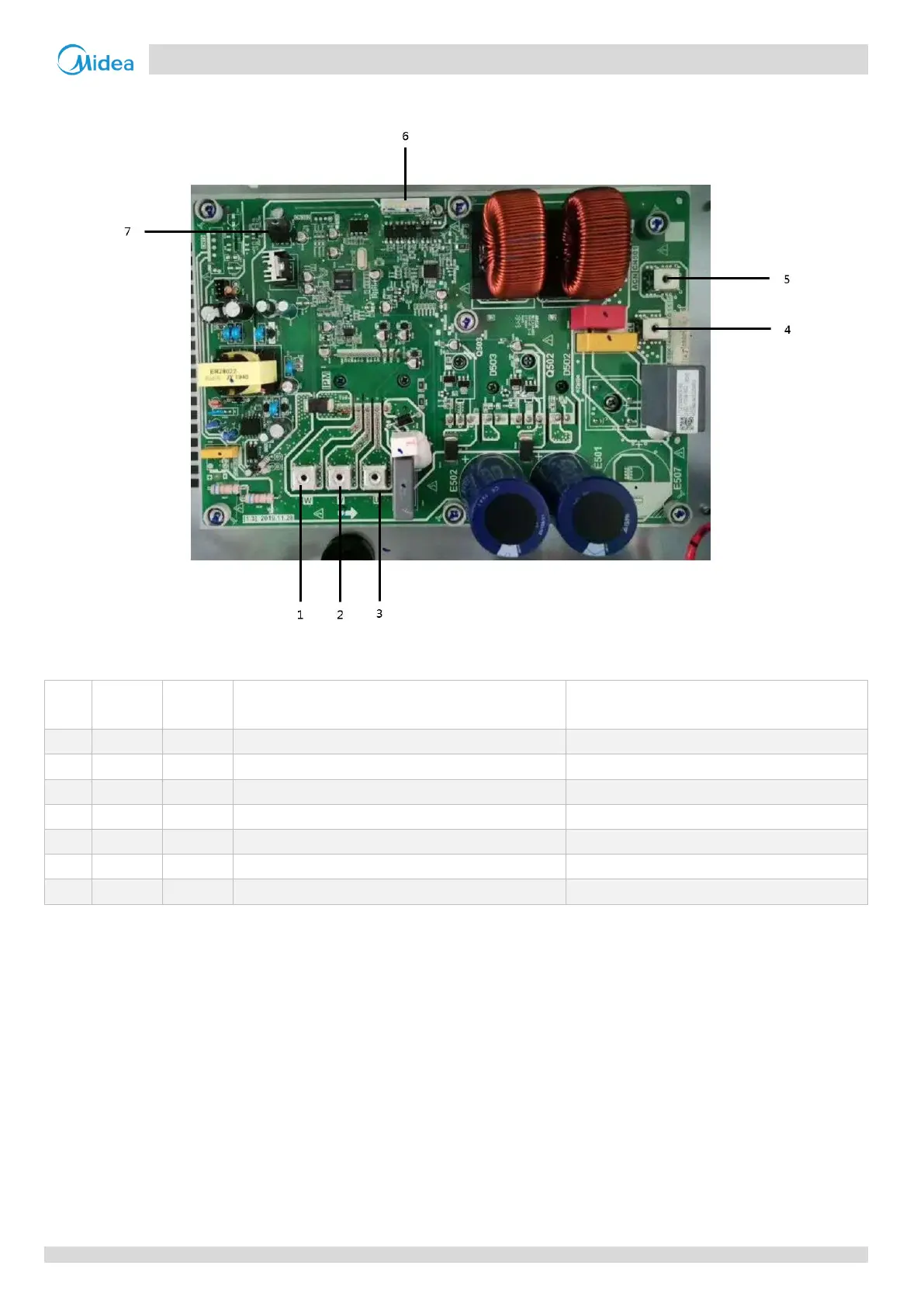

Inverter Module
NO.
Port
code
Port
code
Content
Port voltage
1
/
U
Compressor connection port U
380V AC
2
/
V
Compressor connection port V
380V AC
3
/
W
Compressor connection port W
380V AC
4
ACL
CN502
Power supply port for inverter PCB (L)
310V AC
5
ACN
CN501
Power supply port for inverter PCB (N)
310V AC
6
/
CN32
Communication with main PCB
0-5V DC(varying)
7
/
IC315
EEPROM
\
