Midea SMK-D140HHN1-3

High Temperature Hydro Module
202003 27
Service
Manual

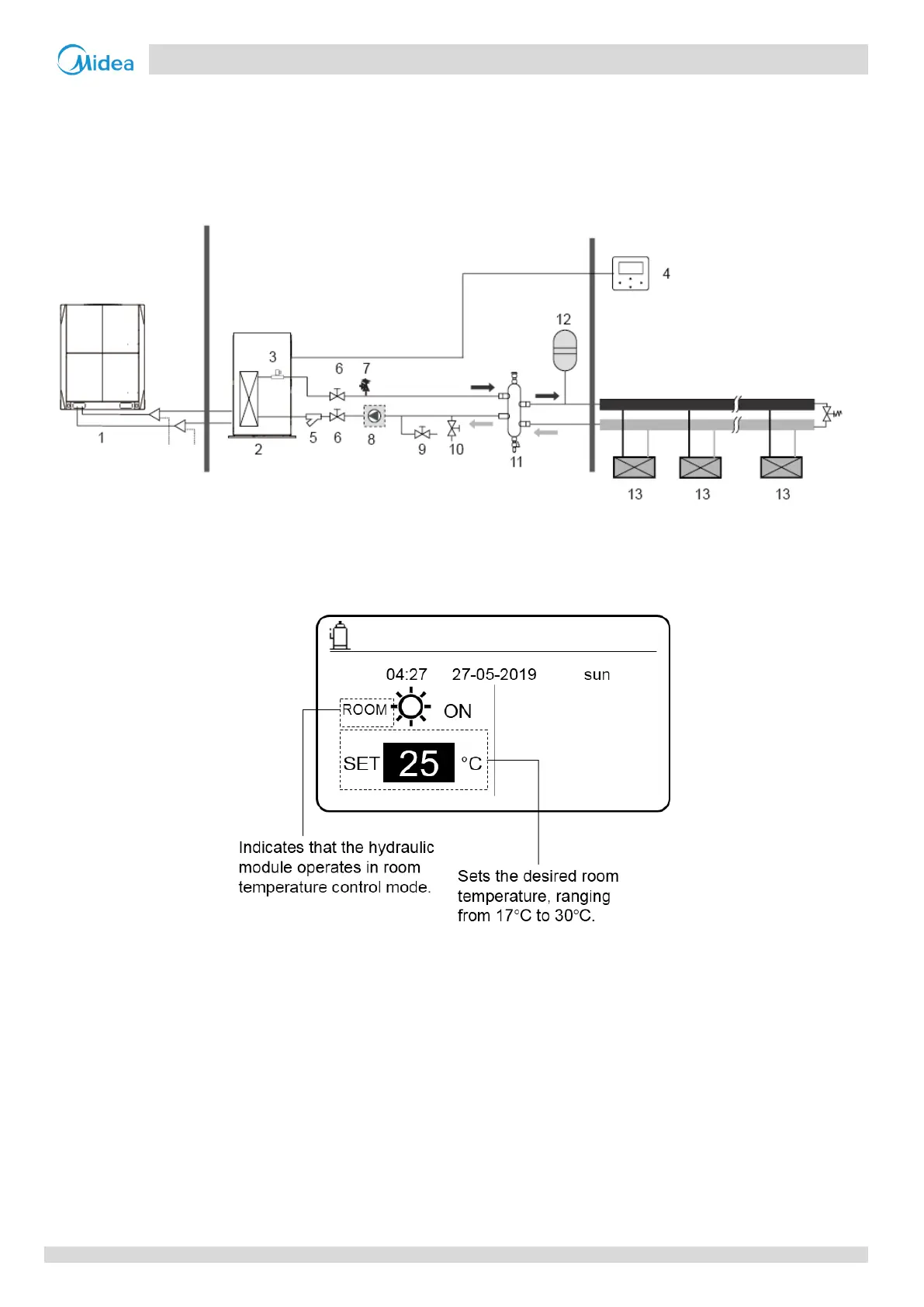

11.2 Scenario 2
Only heating mode is available and the hydraulic module operates in water outlet room control mode. (For more information,
please read the Engineering Data Book.)
Note: The wired controller must be installed indoors, where heating is required. The wired controller is equipped with a
temperature sensor for detecting room temperature.
