7. Reattach the upper part of the wire controller
After adjusting the upper case and then buckle the upper case; avoid clamping the wiring during installation
3.2.3 Two-wired non-polarity wired controller(KJR-120G)(Optional)

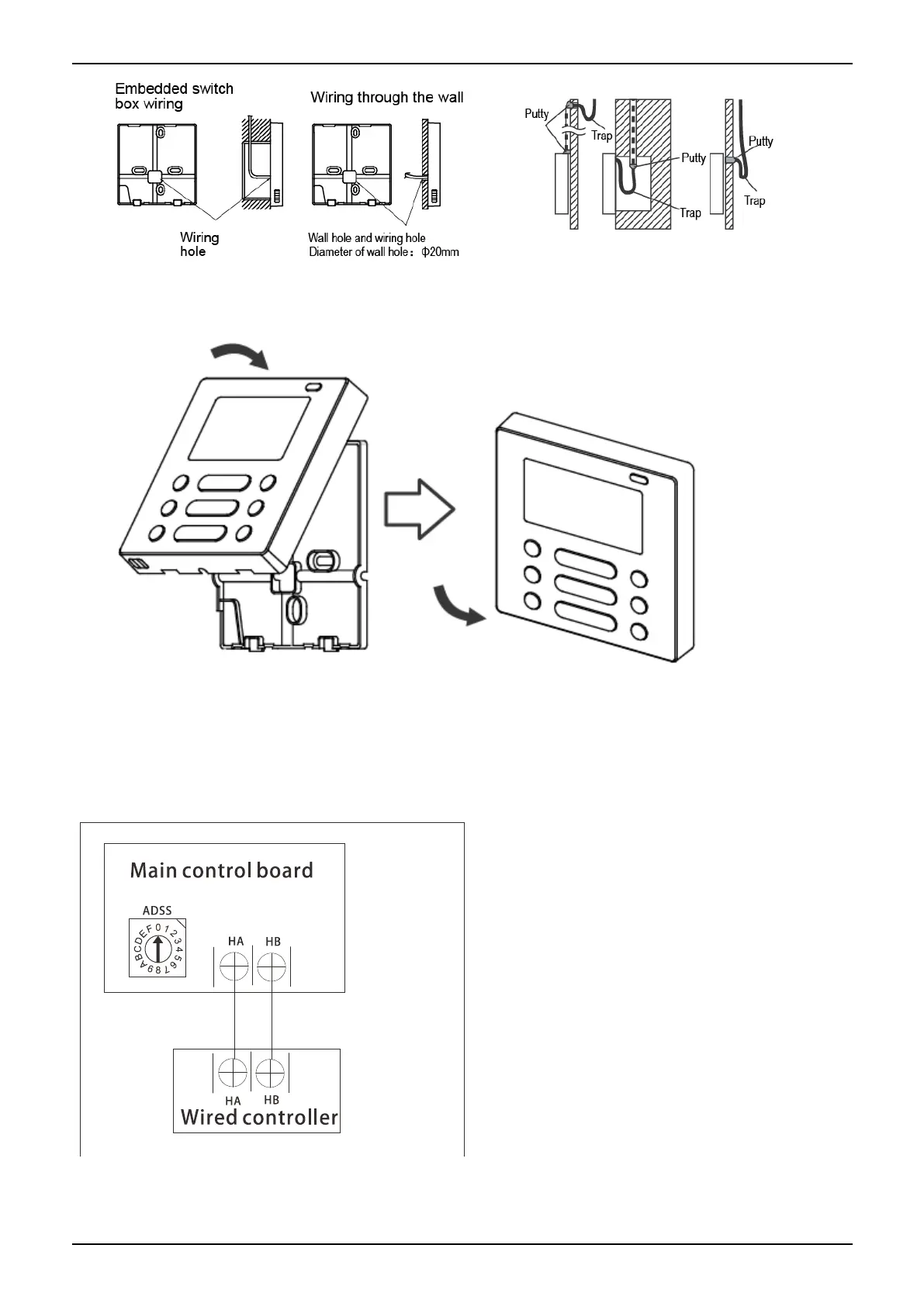

1.Connection
For Cassette:
The wired controller connects to main control board directly.
For Duct, Ceiling& floor
The wired controller connects to terminal board, terminal board connects to main control board.
