V6R Series Engineering Data Book

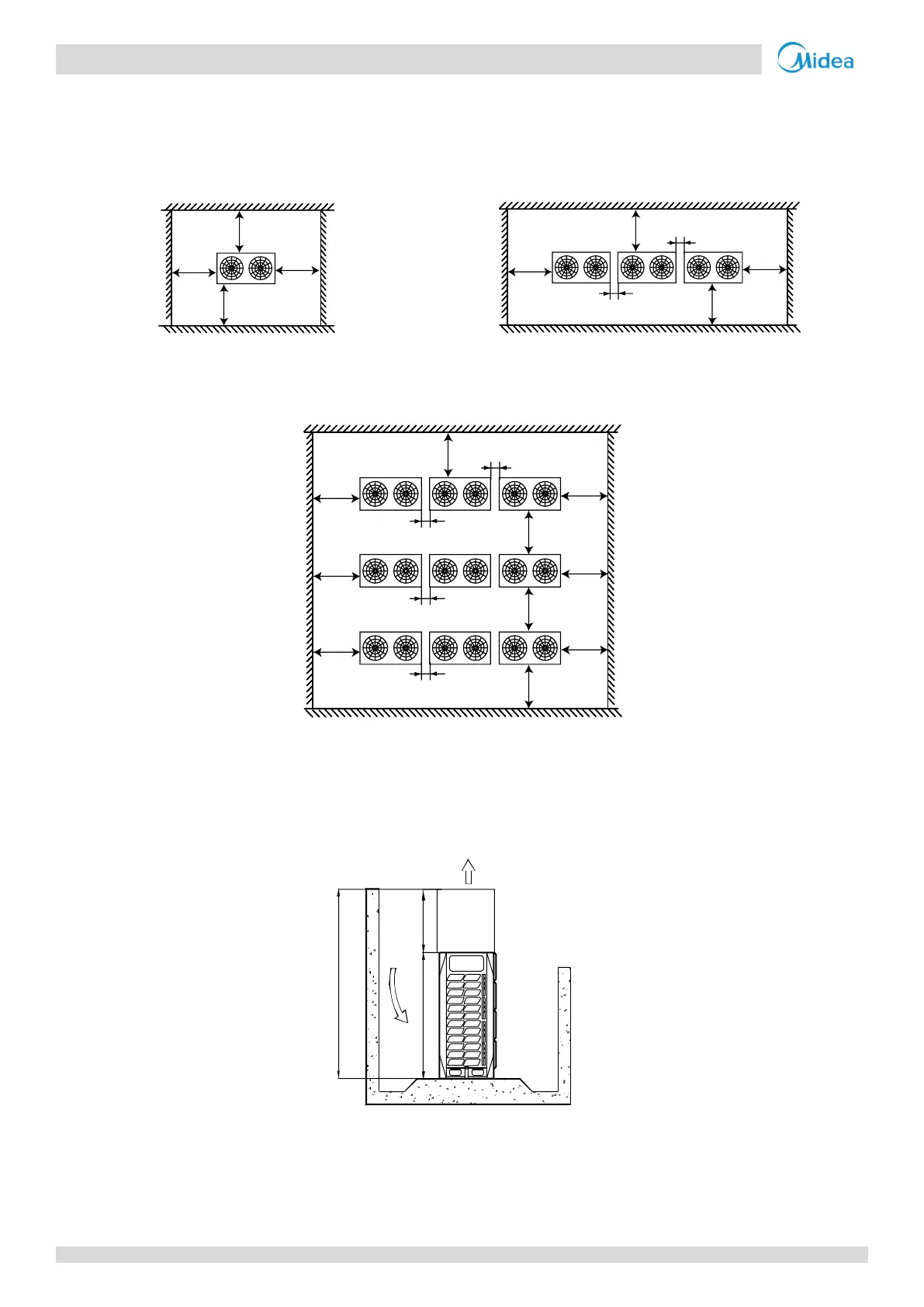

4 Installation Space Requirements
4.1 Outdoor Units Space Requirements
For single unit installation
For single row installation
Figure 2-4.1: Single unit installation (unit: mm)
Figure 2-4.2: Single row installation (unit: mm)
For multi-row installation
Figure 2-4.3: Multi-row installation (unit: mm)
Depending on the height of adjacent walls relative to the height of the units, ducting may be required to ensure proper air
discharge. In the situation depicted in Figure 2-4.4, the vertical section of ducting should be at least H-h high.
Figure 2-4.4: Top of unit below top of adjacent wall
>1000
Front
>1000
>1000
>1000
100-500
100-500
>1000
>1000
>1000
Front
>1000
100-500
100-500
100-500
100-500
>1000
>1000
>1000
>1000
>1000
>1000
Front
Front
Front
>1000
>1000
>1000
>1000
>1000
>1000
>1000
100-500
Front
Front
h
H-h
H
