Midea V6R Series

V6R VRF 50/60Hz
41
Part 2
-
Outdoor Unit Engineering Data
4.2 Mode Selection Box Space Requirements
MS01

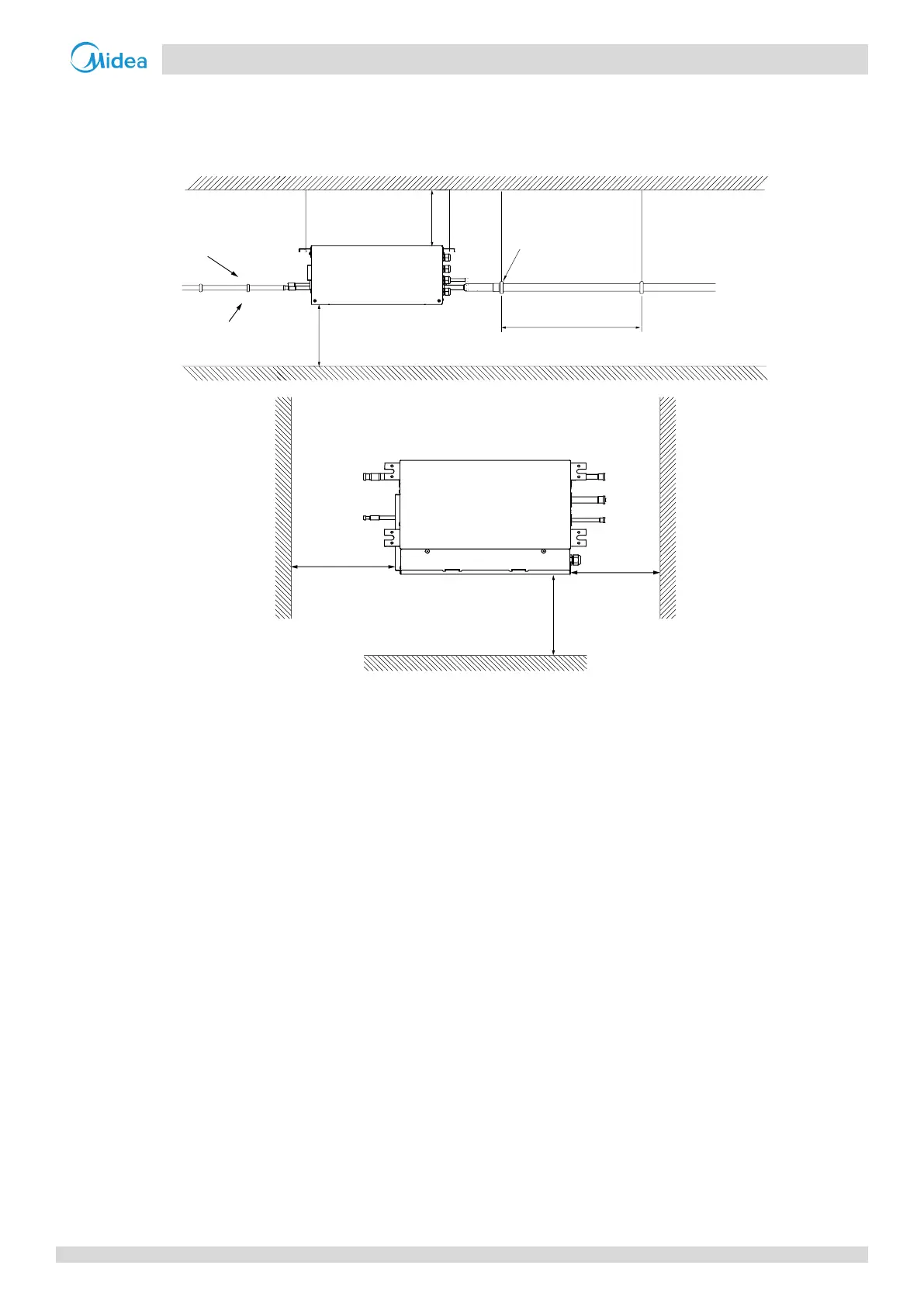

Figure 2-4.5: MS01 installation requirement (unit: mm)
Refrigerant pipe
Ceiling concrete
Ceiling
150 or more
Unit: mm
1000 or less
1000 or less
Firmly secured pipe
hanger
Firmly secured pipe
hanger
50 or more
Top surface of the MS
500 or more
400 or more
500 or more
Control box
