Midea V6R Series User Manual

V6R VRF 50/60Hz
117
Part 2
-
Outdoor Unit Engineering Data

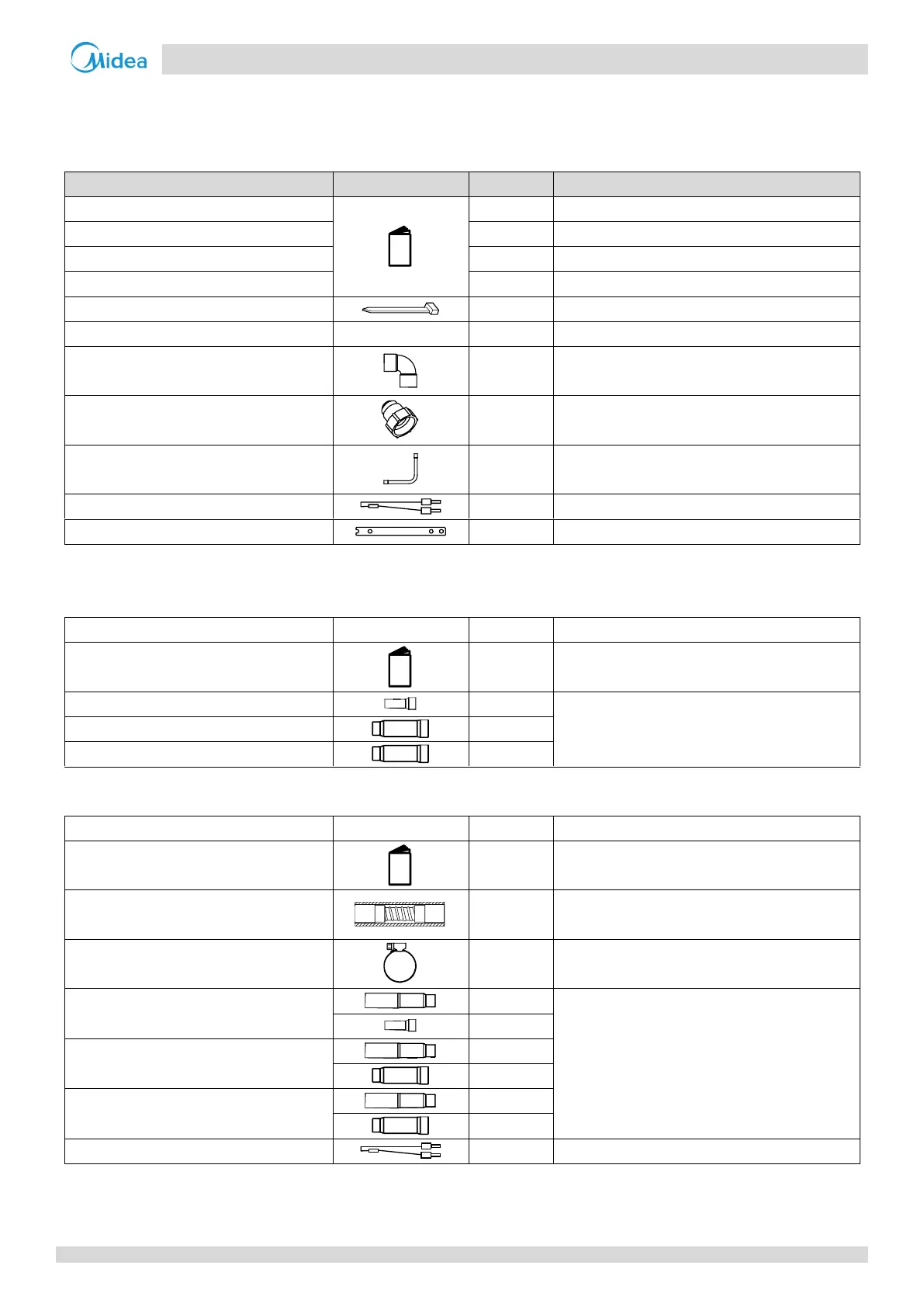

12 Accessories
12.1 Outdoor Unit Standard Accessories
Table 2-12.1: Outdoor unit standard accessories
Name
Shape
Quantity
Function
Installation manual
1
Owner’s manual
1
Erp. information
1
Information requirements
1
Tie wrap
2
Screw pack
-
1
Reserved for maintenance
90° elbow
1
To connect piping (For 10-20HP)
Seal plug
8
To clean pipes
Connection pipe
3
To connect gas and liquid pipes
Matched resistor
2
Enhances communication stability
Wrench
1
Removing side plate screws
12.2 Mode Selection Box Standard Accessories
Table 2-12.2: MS01 standard accessories
Name
Shape
Quantity
Function
MS installation & operation manual
1
Adapter pipe (for liquid pipe)
1
Connect the MS box and the outdoor unit.
Adapter pipe (for high pressure gas pipe)
2
Adapter pipe (for low pressure gas pipe)
2
Table 2-12.3: MS04-12 standard accessories
Name
Shape
Quantity
Function
MS installation & operation manual
1
Drainage pipe
2
Connect the drainage port of the MS box and the
PVC water pipe.
Snap ring
2
Fasten the connector between the drainage pipe
and the MS drainage port.
Adapter pipe (for liquid pipe)
1
Connect the MS box and the outdoor unit.
The quantity of adapter pipe (for liquid pipe) of
MS08/MS10/MS12 is 2.
1
Adapter pipe (for high pressure gas pipe)
1
1
Adapter pipe (for low pressure gas pipe)
1
1
Matched resistor
4
Enhances communication stability
