5.2 External dimension
Description
Code
HS-125SN
Size (mm)
Height to Top of Case
A
842
Width
B
480
Depth w/Cabinet
C
390
Depth w/Door
D
440
Depth w/Handle
E
440
Depth (Door open 90 deg. w)
F
887
Depth (Door open 135 deg. w)
G
760
Width (Door open 135 deg. w)
H
810

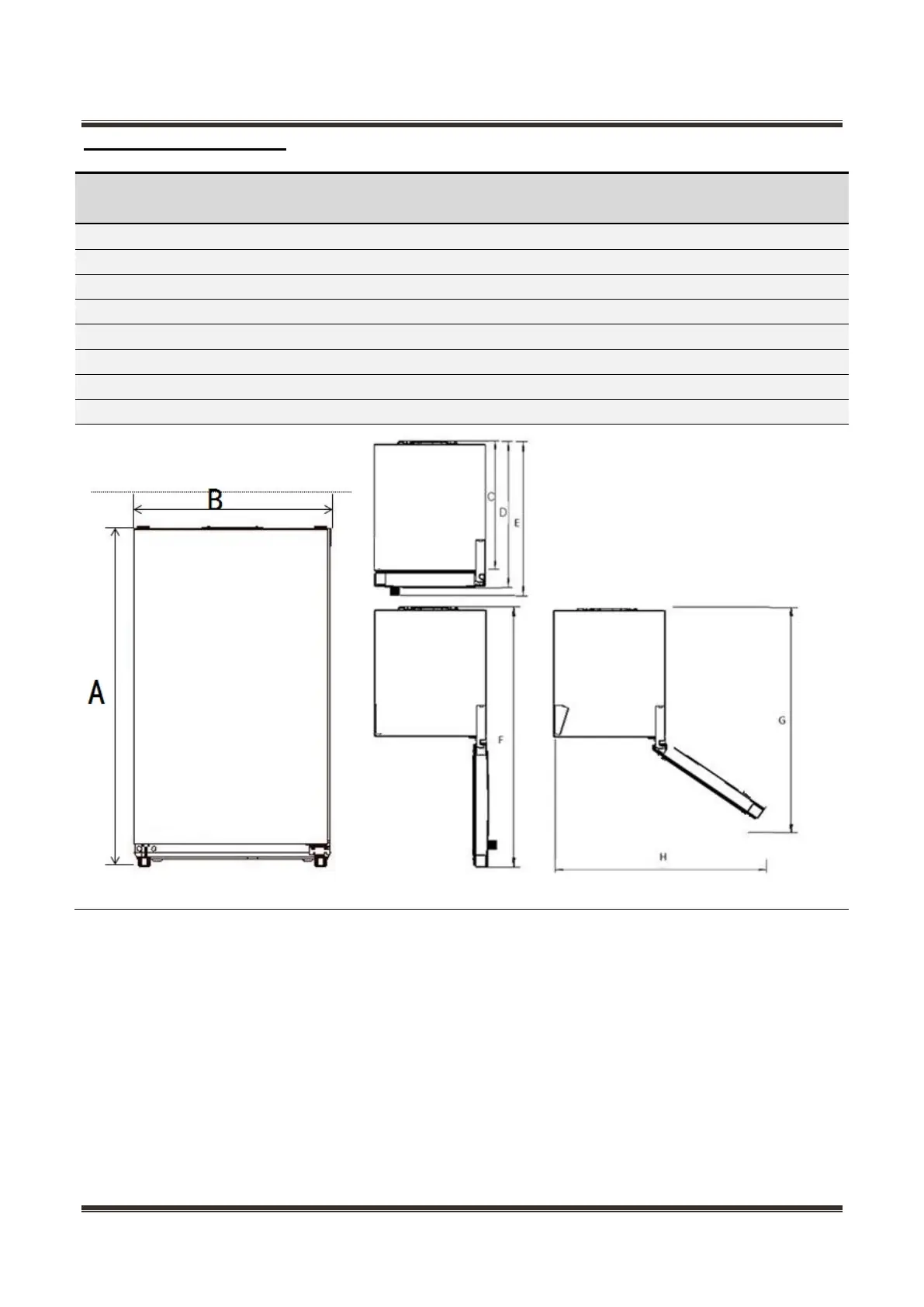

(The picture is only for reference)
