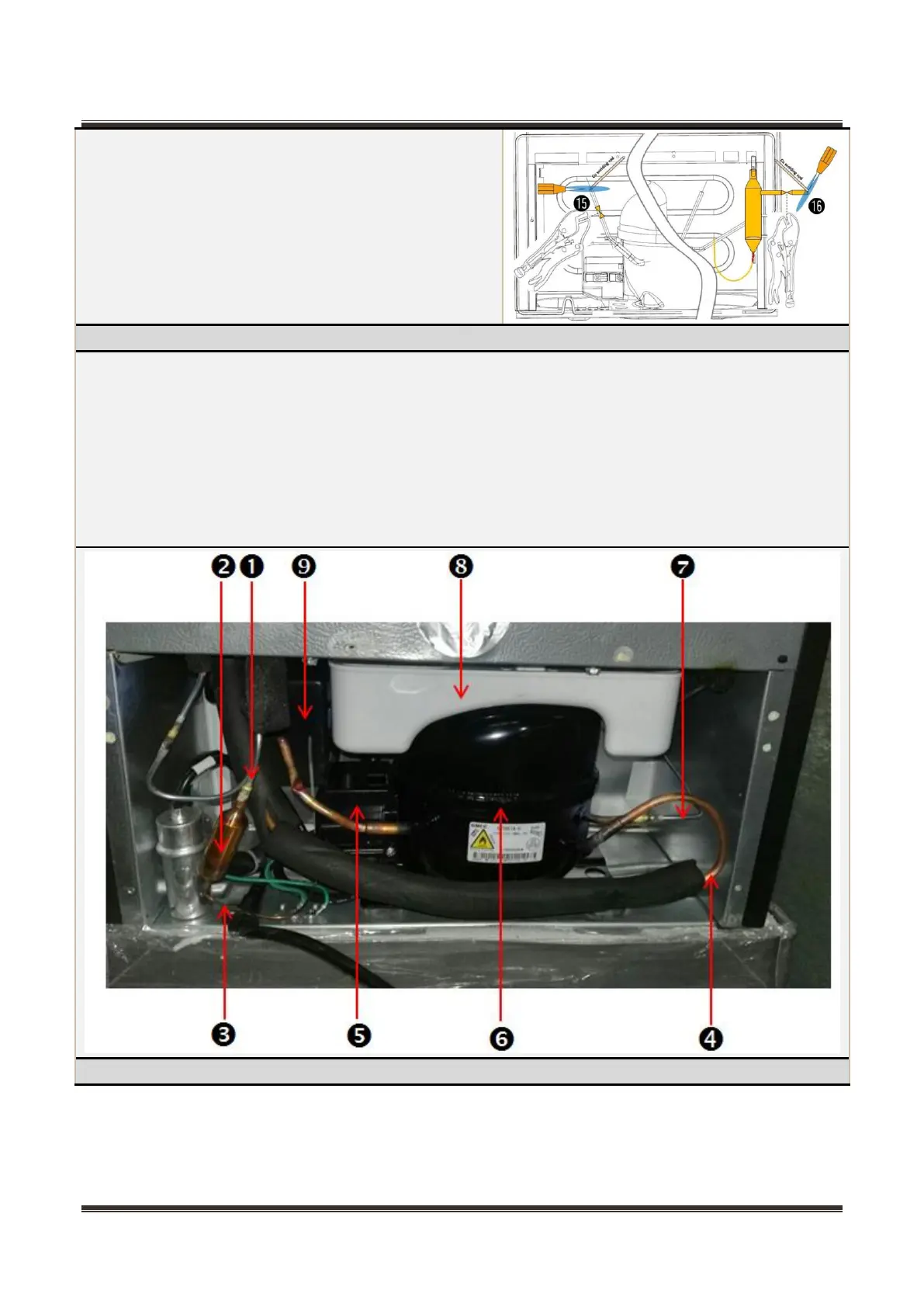

15）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Piping system in the compressor case
❶ Condenser-1(out)
❷Drier
❸Capillary Tube
❹Sution Tube
❺Compressor cover ❻Compressor
❼ Condenser-1(in)
❽drain tray
❾Temperature board box
Drain tray
