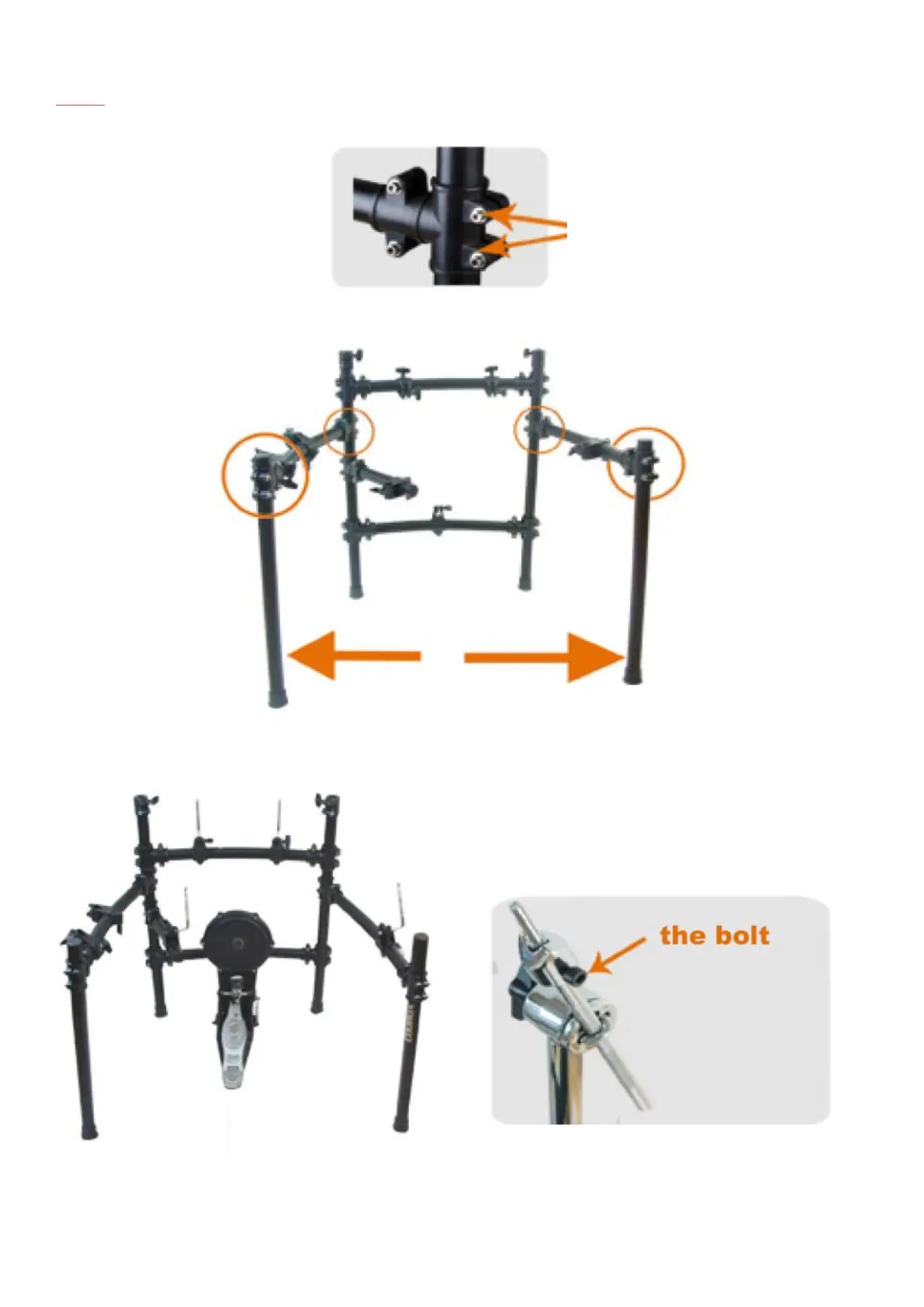

STAND
Adjust the position simply loosen
two screws
Distance≦1.3m(Less than 1.3m)
1. Install Kick drum pedal and step on the hammer.
2. L-strut insert drum plate bracket deck.
3. Finally, the Cha piece strut stent insertion clips
Use black nut to adjust
the position.
Strut toward the direction
of the player.
