3. Technical Specifications of the PianoBox Pro :
● Easy to use with keyboards, master keyboards, or computer with MIDI.
● Adjustable headphone out 32Ω, 65mW, 20Hz- 20kHz, thd 0.1%
● Line Out, 10kΩ, 1V, 20Hz- 20kHz, thd 0.01%
● Direct Input for guitar/bass 10kΩ, 20Hz- 20kHz
● Including USB2.0 5V power
● LCD display
4. Connections and user panel:

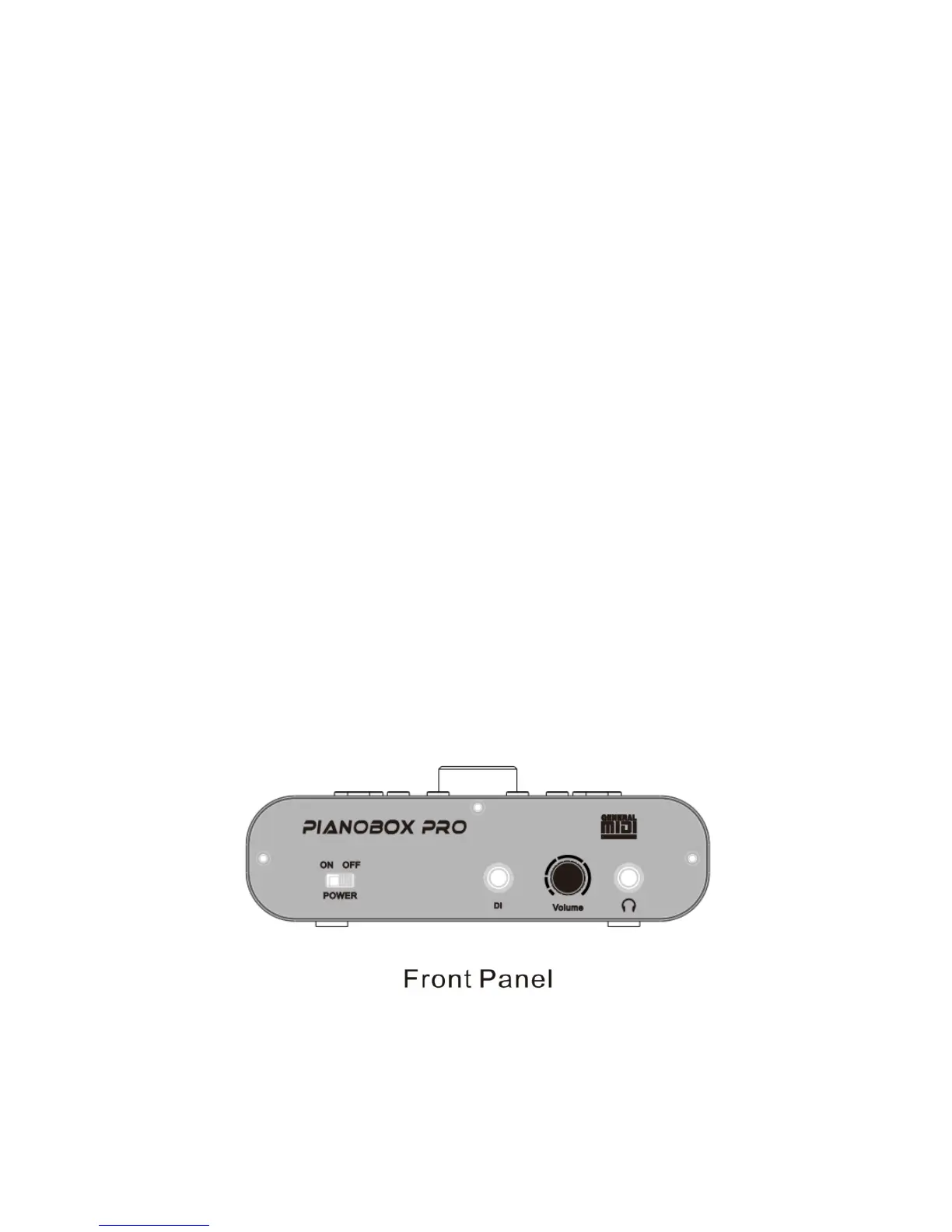

4.1 Front Panel
On the front of the PianoBox Pro you will find the DI (direct input) for
guitar/bass and the headphone out. Please connect your guitar or
headphone here. And the volume leveler, which controls the volume of
headphone out . The left side is the power switch.
