Midland LXT320 Series User Manual

®
Page 5 www.midlandradio.com
-TRA ALK
X
T
MENU

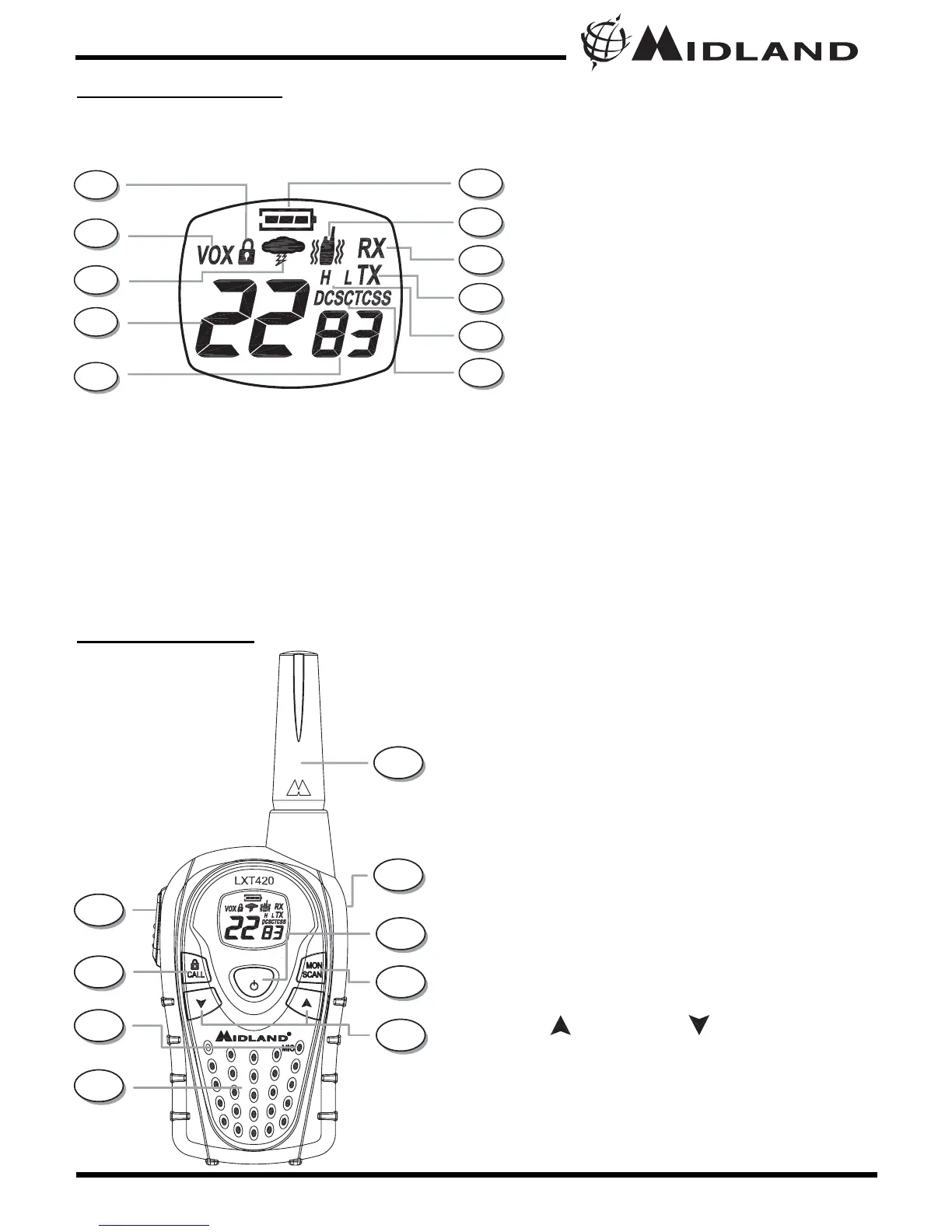

CONTROLS
LCD DISPLA
Y
1. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
2. VOX ICON – Indicates when VOX
mode is active.
3. NOAA WEATHER (WX) BAND ICON–
Indicates when the radio is in Weather
Band mode.
4. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band (1~10 on
WX band).
5. PRIVACY CODE – Indicates Privacy
Code selected by user (oF~38/oF~83).
6. BATTERY METER – Indicates the
battery level.
7. VIBRATE-ALERT ICON – Indicates
when the Vibrate-Alert (LXT420 Series
only) feature is on.
8. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
9. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
10. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/L)
11. PRIVACY CODE ICON – Indicates
Privacy Code setting (CTCSS/DCS).
12. PTT Button – Press and hold to transmit
voice communication.
13. CALL/LOCK Button – Press to send a
CALL Alert signal. Press and hold to turn
KEY LOCK on/off.
14. MIC – Built-in microphone.
15. SPEAKER – Built-in speaker.
16. ANTENNA.
17. EXTERNAL SPEAKER/MIC/CHG. JACK
18. POWER / MENU Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press momentarily to
access Menu mode.
19. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to
enter MONITOR mode
20. UP and DOWN Button – Make
adjustments in MENU mode.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
20
19
18
17
16
Model LXT320/420 Series
11
