CONTROLS
LCD DISPLA
Y

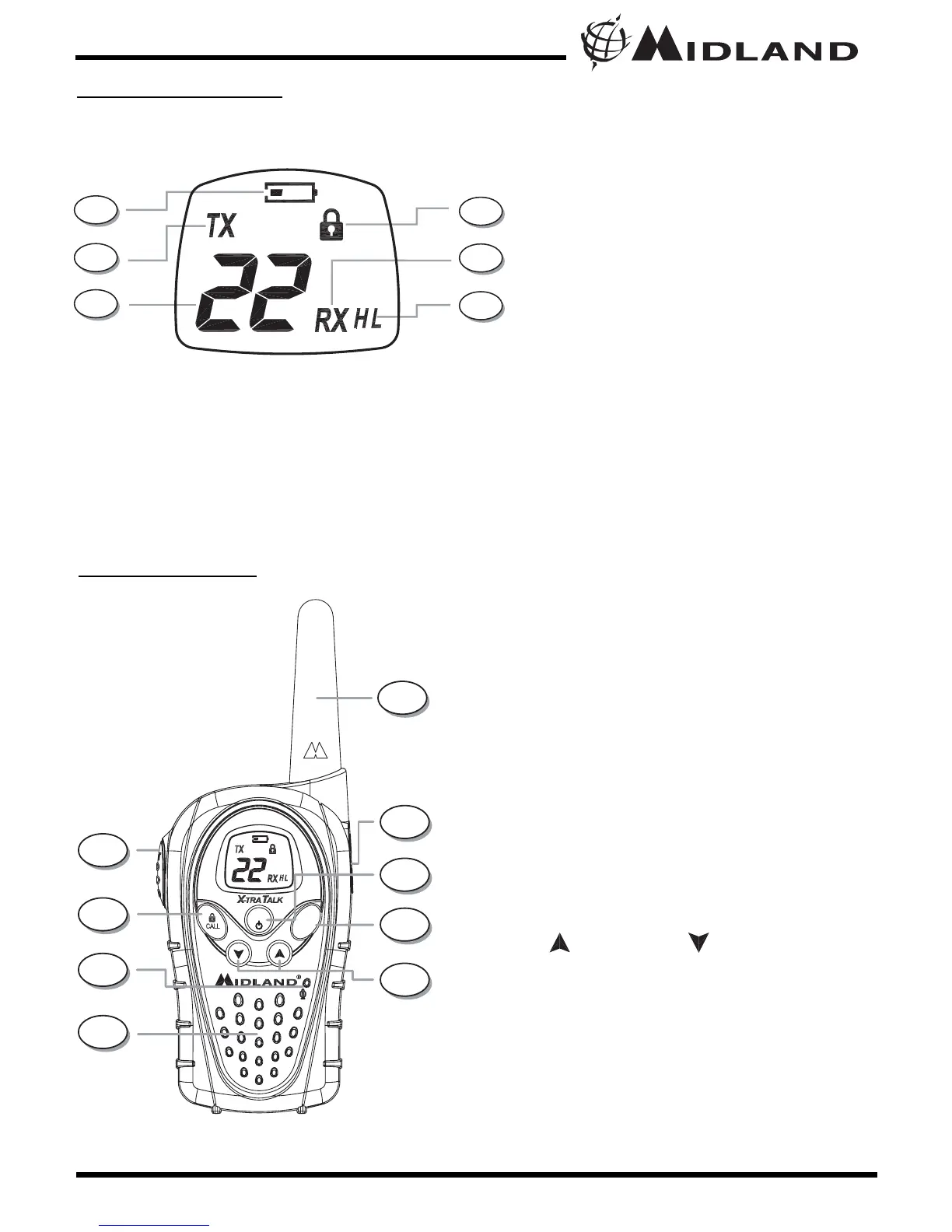

1. LOW BATTERY ICON – Indicates the
battery level is low.
2. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
3. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band.
4. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
5. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
6. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/L)
7. PTT Button – Press and hold to transmit
voice communication.
8. CALL/LOCK Button – Press to send a
CALL Alert signal. Press and hold to turn
KEY LOCK on/off.
9. MIC – Built-in microphone.
10. SPEAKER – Built-in speaker.
11. ANTENNA
12. EXTERNAL SPEAKER/MIC/CHG. JACK
13. POWER / MENU Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press momentarily to
access Menu mode.
14. SCAN Button – Press to enter SCAN
mode.
15. UP and DOWN Button – Make
adjustments in MENU mode.
1
2
3
4
5
6
7
8
9
10
15
14
13
11
Model LXT340/345 Series
12
To Next Page
