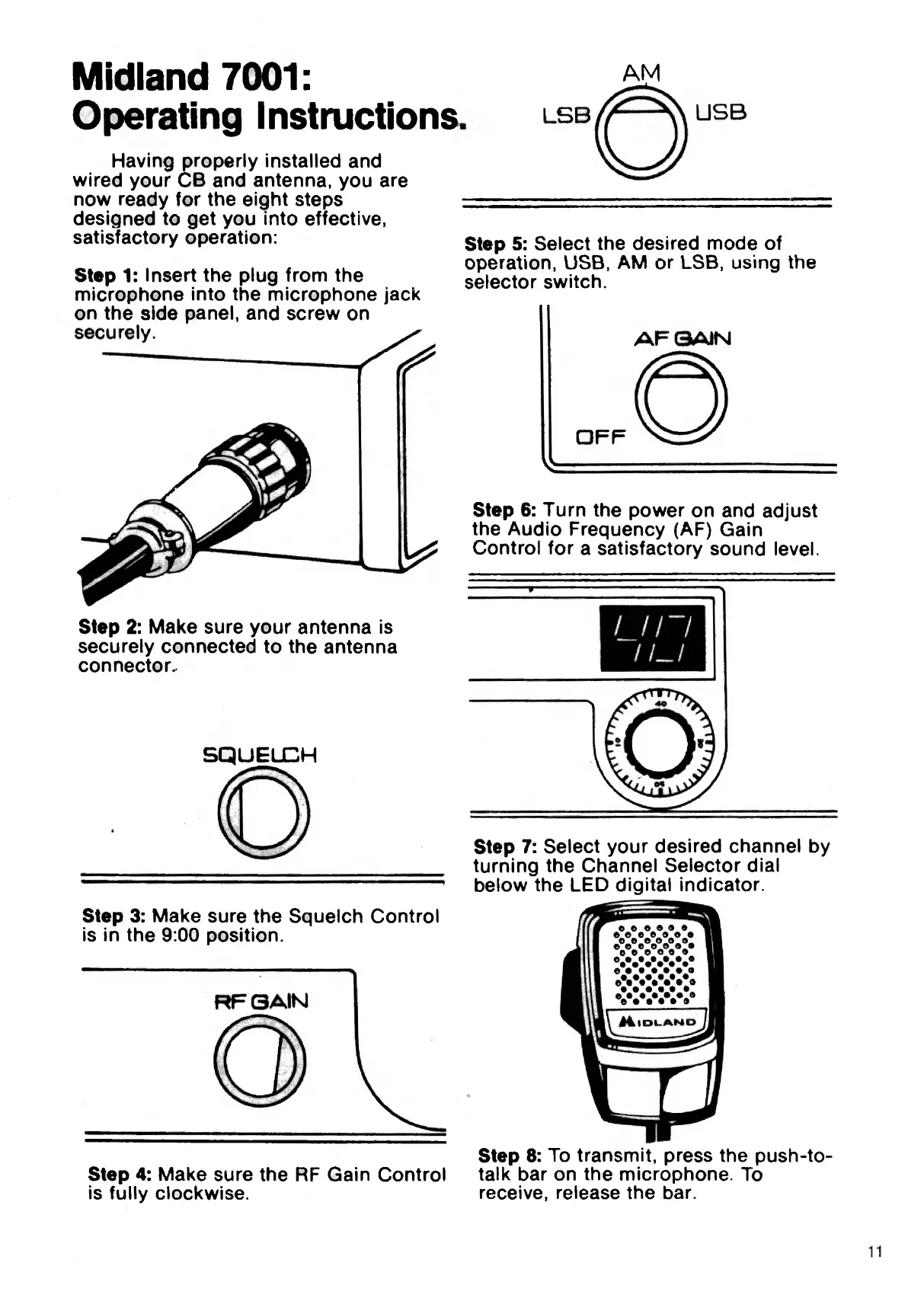

Midland 7001:
Operating Instructions
Having properly installée! and
wired your CB and antenna, you are
now ready for the eight steps
designed to get you mto effective,
satisfactory operation:
Step 1: Insert the plug from the
microphone into the microphone jack
on the side panel, and screw on
Step 2: Make sure your antenna is
securely connected to the antenna
connector..
S Q U E L C H
AM
Step 5: Select the desired mode of
operation, USB, AM or LSB, using the
selector switch.
Step 6: Turn the power on and adjust
the Audio Frequency (AF) Gain
Control for a satisfactory sound level.
Step 7: Select your desired channel by
turning the Channel Selector dial
below the LED digital indicator.
Step 3: Make sure the Squelch Control
is in the 9:00 position.
Step 4: Make sure the RF Gain Control
is fully clockwise.
Step 8: To transmit, press the push-to-
talk bar on the microphone. To
receive, release the bar.
11
