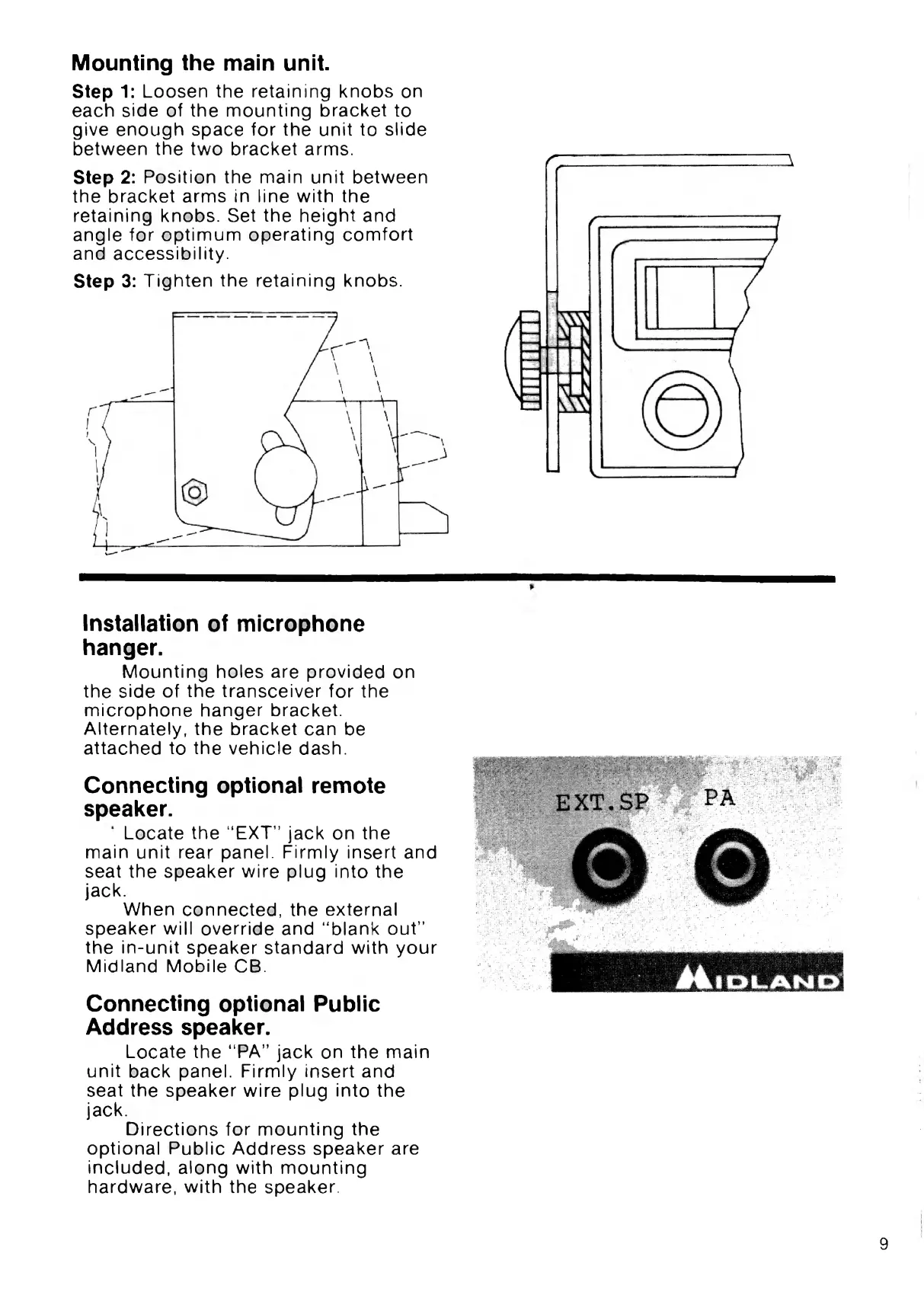

Mounting the main unit.
Step 1: Loosen the retaining knobs on
each side of the mounting bracket to
give enough space for the unit to slide
between the two bracket arms.
Step 2: Position the main unit between
the bracket arms in line with the
retaining knobs. Set the height and
angle for optimum operating comfort
and accessibility.
Step 3: Tighten the retaining knobs.
Installation of microphone
hanger.
Mounting holes are provided on
the side of the transceiver for the
microphone hanger bracket.
Alternately, the bracket can be
attached to the vehicle dash.
Connecting optional remote
speaker.
Locate the “EXT” jack on the
main unit rear panel. Firmly insert and
seat the speaker wire plug into the
jack.
When connected, the externa!
speaker will override and “ blank out”
the in-unit speaker standard with your
Midland Mobile CB.
Connecting optional Public
Address speaker.
Locate the “PA” jack on the main
unit back panel. Firmly insert and
seat the speaker wire plug into the
jack.
Directions for mounting the
optional Public Address speaker are
included, along with mounting
hardware, with the speaker.
9
