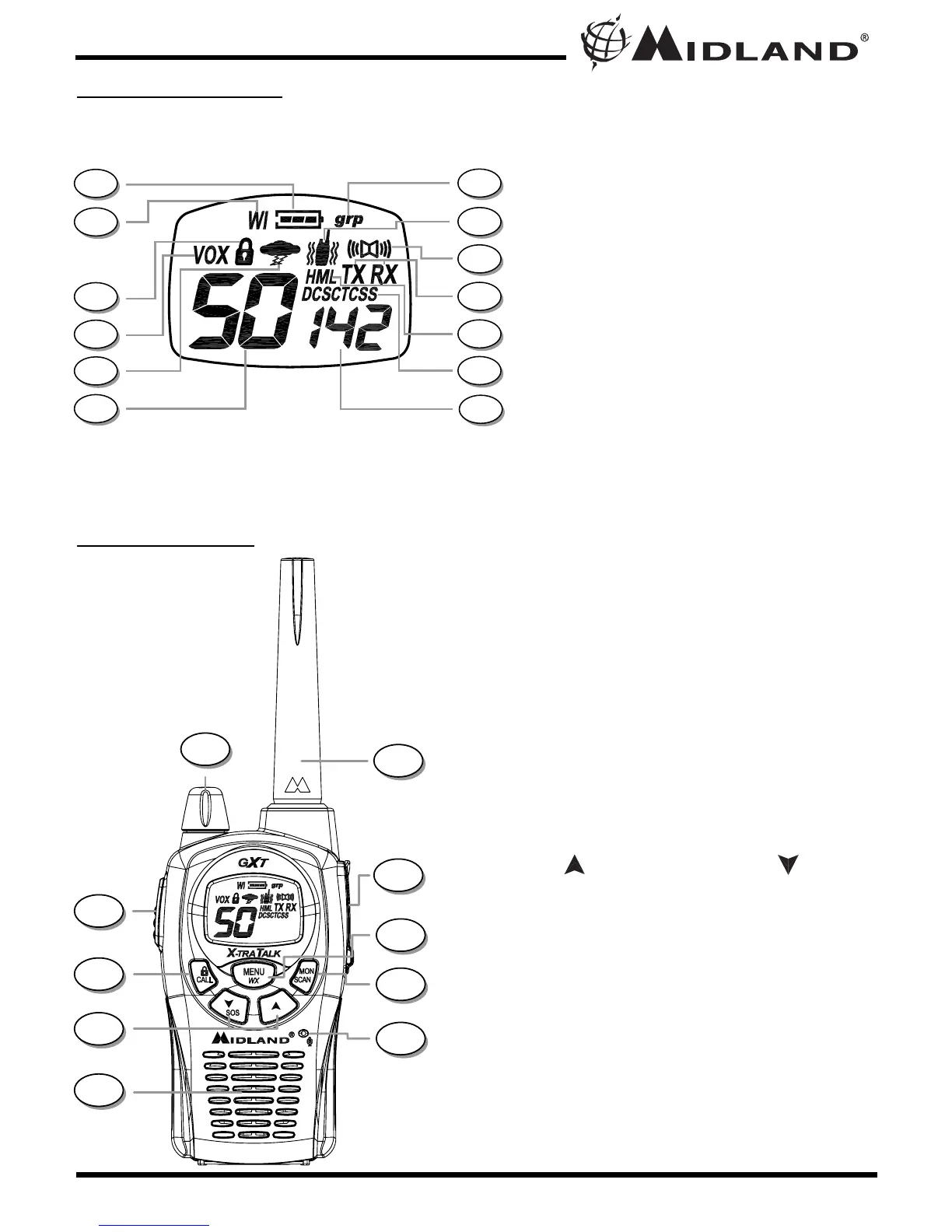

CONTROLS
LCD DISPLA
Y
1. BATTERY METER – Indicates the battery
level.
2. WHISPER ICON – Indicates when the
Whisper feature is on.
3. KEY LOCK ICON – Indicates KEY LOCK
mode is on.
4. VOX ICON – Indicates when VOX mode is
active.
5. NOAA WEATHER (WX) BAND ICON–
Indicates when the radio is in Weather Band
mode.
6. CHANNEL NUMBER – Changes from 1~42 on
GMRS/FRS band (1~10 on WX band).
7. GROUP MODE ICON – Indicates when the
Group Mode is on.
8. VIBRATE ALERT ICON – Indicates when the
Vibrate-Alert feature is on.
9. SOS SIREN ICON – Indicates the SOS Siren
is on.
10. TRANSMIT (TX) / RECEIVE (RX) ICON –
Indicates radio is transmitting (TX) a signal, or
radio is receiving (RX) a transmission..
11. TRANSMIT POWER LEVEL ICON – Indicates
TX Power setting (H/M/L)
12. PRIVACY CODE ICON – Indicates Privacy
Code setting (CTCSS/DCS).
13. PRIVACY CODE – Indicates Privacy Code
selected by user (oF~38/oF~104).
It can only be used on Ch 1~22.
14. POWER/VOLUME KNOB – Turn clockwise to
turn the power on and increase the volume
level. Turn counter-clockwise to decrease the
volume level and turn the power off.
15. PTT Button – Press and hold to transmit
voice communication.
16. CALL/LOCK Button – Press to send a CALL
Alert signal. Press and hold to turn KEY
LOCK on/off.
17. UP and DOWN / SOS SIREN Button –
Make adjustments in MENU mode. Press and
hold the UP button for 5 seconds to activate
the SOS Siren function.
18. SPEAKER – Built-in speaker.
19. ANTENNA.
20. EXTERNAL SPEAKER/MIC JACK.
21. MENU/WX SCAN Button – Press to access
Menu mode. Press and hold for 5 seconds to
activate the NOAA Weather Scan function.
22. MONITOR/SCAN Button – Press to enter
SCAN mode. Press and hold to enter
MONITOR mode
23. MIC – Built-in microphone.
1
2
3
4
5
6
7
8
9
14
15
16
17
18
23
22
21
20
19
Model GXT1000/1050 Series
10
11
12
13
