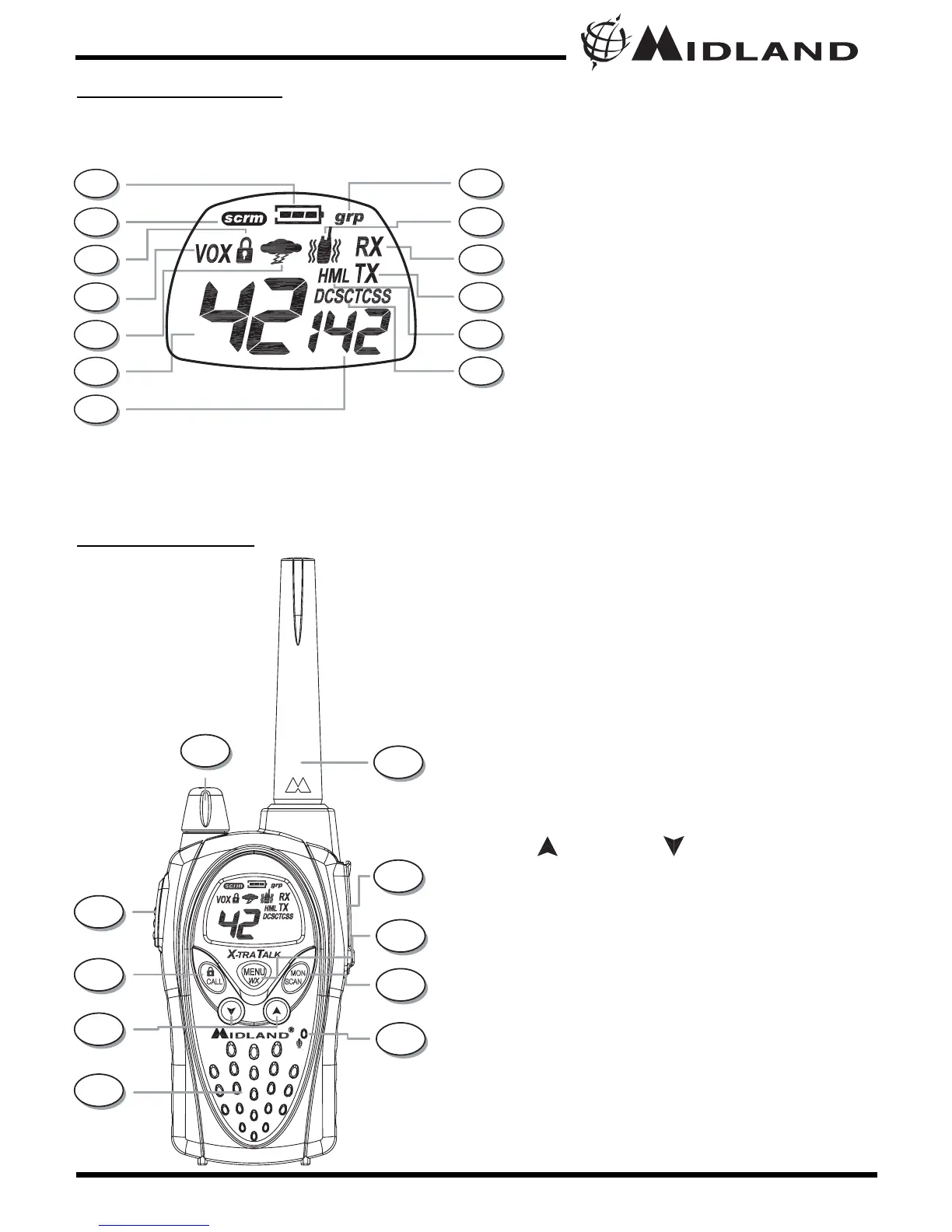

CONTROLS
LCD DISPLA
Y
1. BATTERY METER – Indicates the battery
level.
2. SCRAMBLER ICON – Indicates when
the Scrambler feature is on.
3. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
4. VOX ICON – Indicates when VOX
mode is active.
5. NOAA WEATHER (WX) BAND ICON–
Indicates when the radio is in Weather
Band mode.
6. CHANNEL NUMBER – Changes from
1~42 on GMRS/FRS band (1~10 on WX
band).
7. PRIVACY CODE – Indicates Privacy Code
selected by user (oF~38/oF~104).
It can only be used on Ch 1~22.
8. GROUP MODE ICON – Indicates
when the Group Mode is on.
9. VIBRATE ALERT ICON – Indicates when
the Vibrate-Alert feature is on.
10. RECEIVE (RX) ICON – Indicates
radio is receiving a transmission.
11. TRANSMIT (TX) ICON – Indicates radio is
transmitting a signal.
12. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/M/L)
13. PRIVACY CODE ICON – Indicates
Privacy Code setting (CTCSS/DCS).
14. POWER/VOLUME KNOB – Turn clockwise to
turn the power on and increase the volume
level. Turn counter-clockwise to decrease the
volume level and turn the power off.
15. PTT Button – Press and hold to transmit
voice communication.
16. CALL/LOCK Button – Press to send a CALL
Alert signal. Press and hold to turn KEY
LOCK on/off.
17. UP and DOWN Button – Make
adjustments in MENU mode..
18. SPEAKER – Built-in speaker.
19. ANTENNA.
20. EXTERNAL SPEAKER/MIC JACK.
21. MENU/WX SCAN Button – Press to access
Menu mode. Press and hold for 5 seconds to
activate the NOAA Weather Scan function.
22. MONITOR/SCAN Button – Press to enter
SCAN mode. Press and hold to enter
MONITOR mode
23. MIC – Built-in microphone.
1
2
3
4
5
6
7
8
9
10
14
15
16
17
18
23
22
21
20
19
Model GXT900/950 Series
