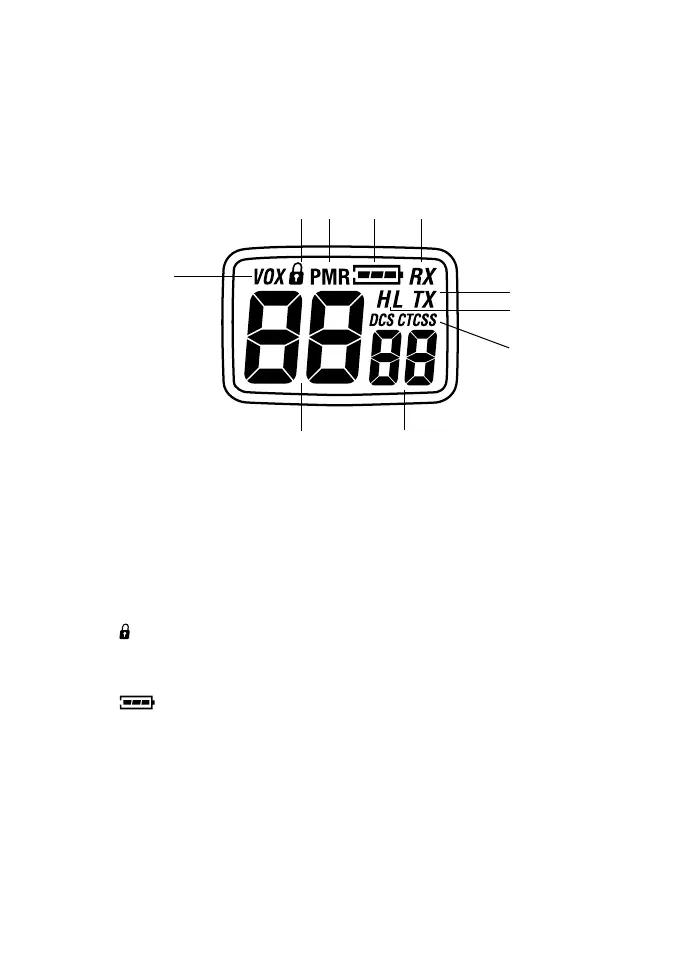

Display
1. Selected channel
2. VOX - Function activated
3.
PTT
SPK
MIC
XT50 PRO
- Keypad lock activated
4. H/L - Indicates the high / low power selection in transmission (only in
PMR band)
5.
PTT
SPK
MIC
XT50 PRO
- Battery status indicator
6. RX - Radio in rx mode (busy channel)
7. TX - Radio in transmission (PTT pressed)
8. DCS/CTCSS - Type of sub-audio tone selected
9. Code of the selected CTCSS or DCS tone (CTCSS: 1-38; DCS: 1-83)
10. PMR - This simbol indicates that the radio is operating on the PMR446
channels
