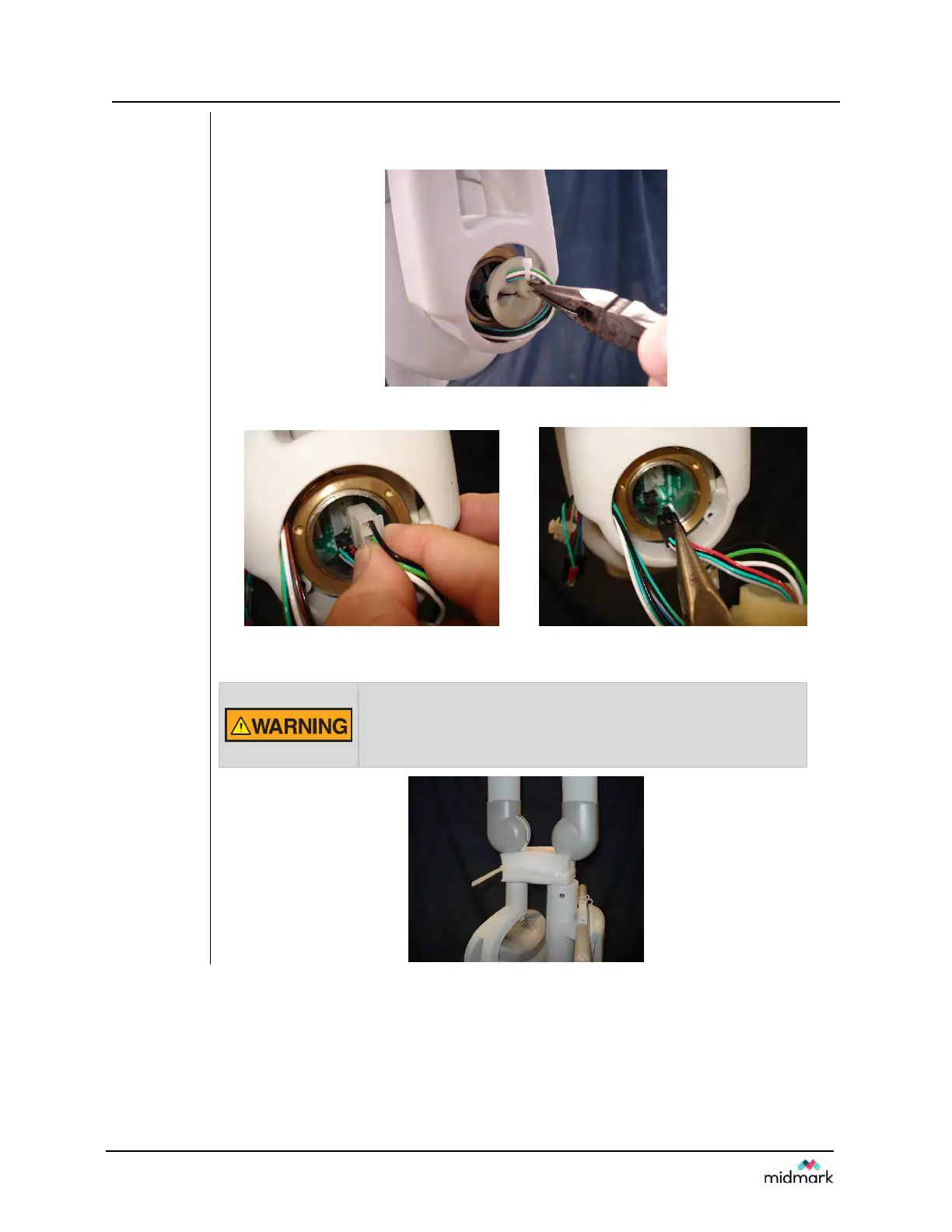

Figure 77
10. Remove the larger retaining ring by pulling it out with a pair of needle nose
pliers.
Figure 78
11. Unplug the black and white connectors located inside the tubehead.
Figure 79
12. Secure the scissor arm with the provided cable tie and foam separator before
removing both spanner rings.
Do not remove the tubehead until this step has been
completed. The spring tension is adjusted to include its weight
so the articulating arm will spring open and can cause serious
injury if it is not secured.
