Installation Options
Preva
14
Installation Options
Mounting Configurations
Mounting
Template

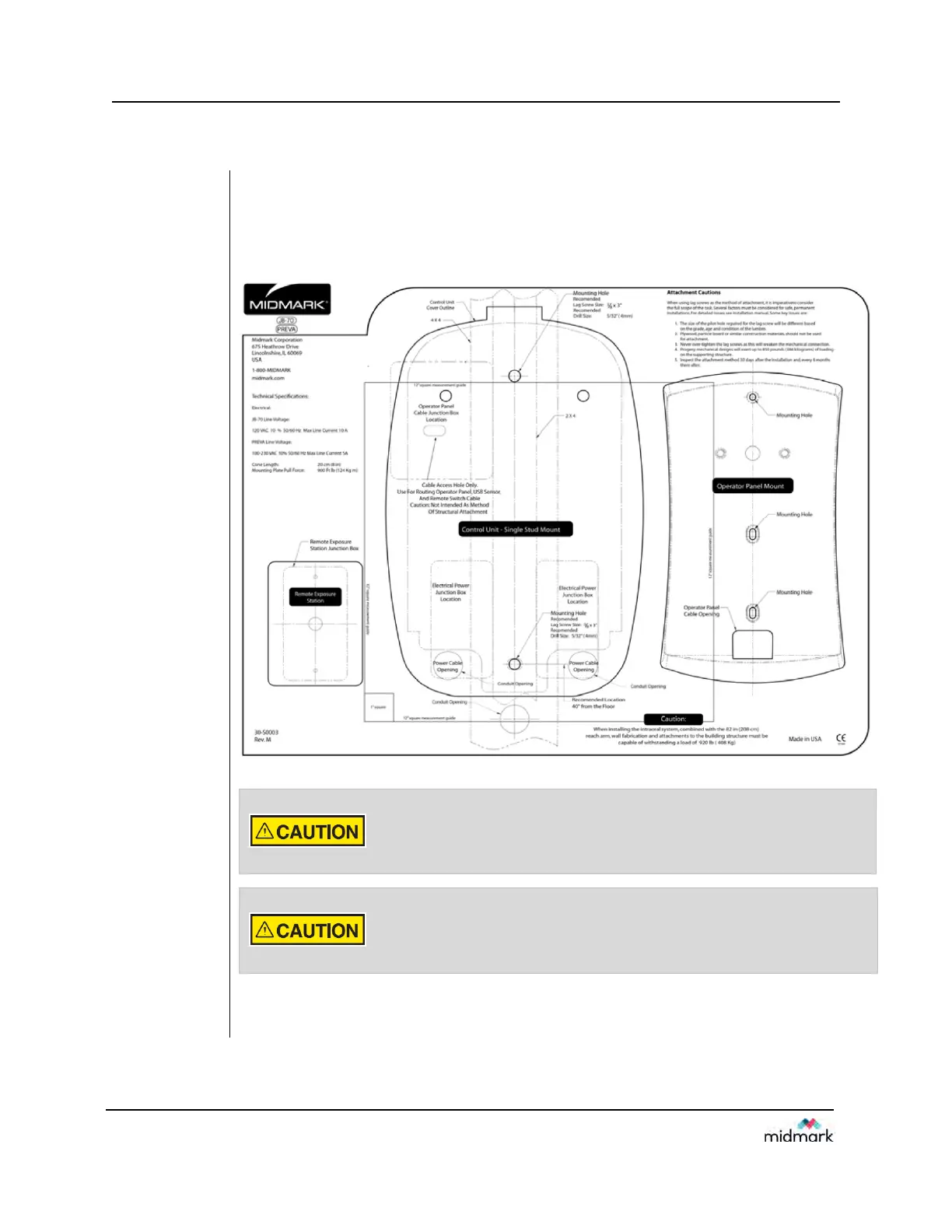

This section gives instructions for installing the Preva Dental X-ray System in three
mounting configurations. Use the mounting template, shown in Figure 8, to guide single stud
installations. Reverse the template for dual-stud installations.
Figure 8
Mounting
Template
When installing the intraoral system, combined with the 82 inch [209
centimeter] reach arm, wall fabrication and attachments to the building
structure must be capable of withstanding a load moment of 920 ft-lb
[127 Kg-m].
Lag screws are not intended to be used as an attachment method for
metal supports such as those found in center island pass-through
cabinets. Midmark provides machine screws, large flat washers and
nylock nuts to use when fastening the system to metal supports.
