Installing the Control Unit on a Single Wood Stud Wall
Mark and Drill
Control Unit
Mounting Holes
SINGLE STUD INSTALLATION WITH THE
“INSTALLATION GUIDE” (30-P0076).
Introduction
The Installation Guide is intended to be a positive means of locating the center of
a 2x4 wooden stud. The Installation Guide is a necessary part of the installation
and must be used whenever single stud installations are performed. The
Installation Guide is equipped with side tabs which can be removed if placement
of the Guide is obstructed by an electrical box. During installations which include
attachment to a 4x4 wooden stud, all of the tabs, on one side of the guide, can be
removed in order to facilitate adequate placement and attachment.

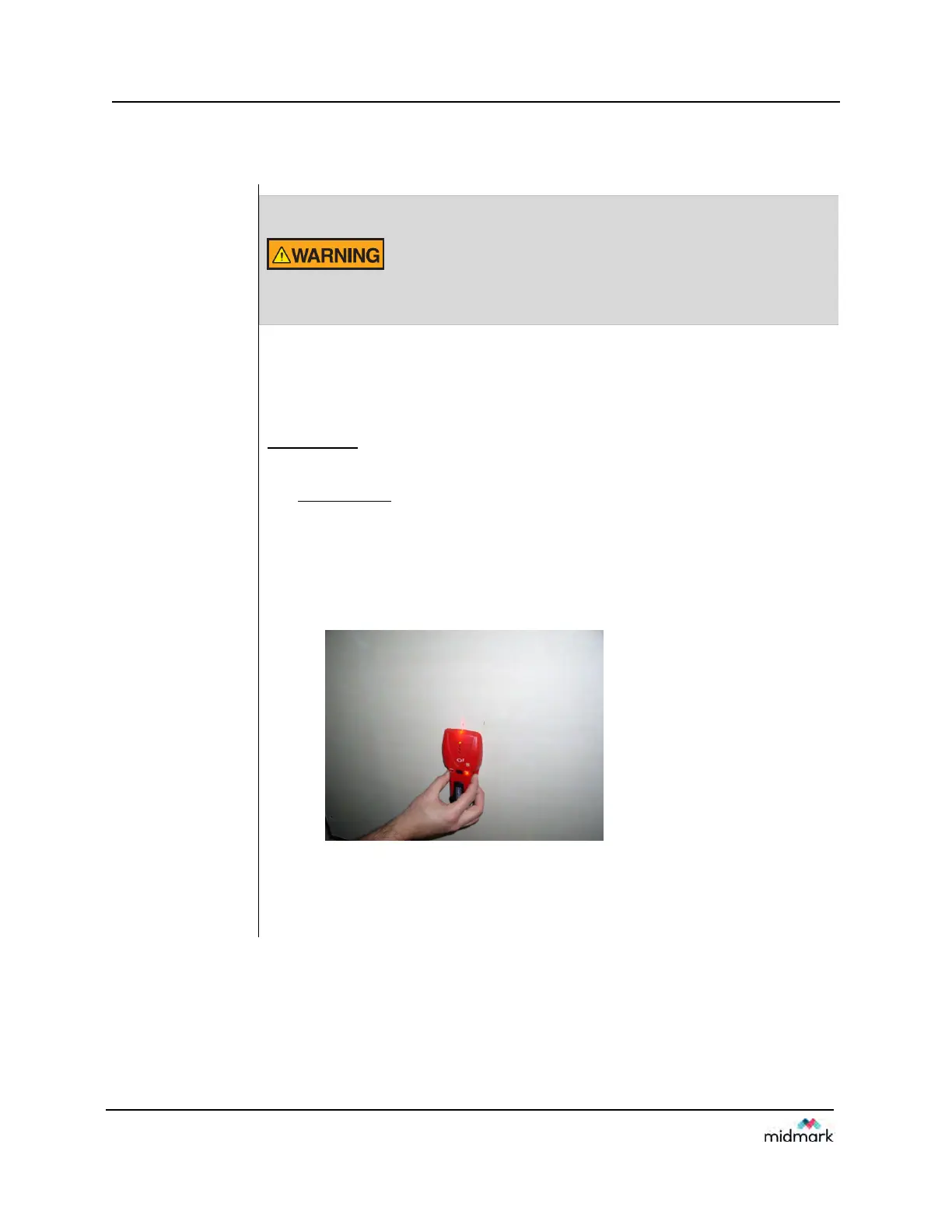

1. Locate the wooden stud.

Donotattachthe82‐inch‐(208cm‐)reachsystemtoawallinth
e
singlestudconfiguration.ContactMidmarkTechnicalSupportfo
r
guidance.


Usetheprovidedmachinescrews,largeflatwashers,andnylock
nutstofastenthesystemtometalsupports.Donotuselag
screws.

