Connecting
the
Horizontal
Arm Cables
to the Power
Supply
Board
1. Attach the black connector from the Horizontal Arm to point J4 of the Power Supply
Control Board [30-08160], as shown in Figure 25.
Note: The plug must be properly oriented. Be sure that the tabs on the connector
are down.
2. Attach the white connector from the Horizontal Arm to point J1 on the Power Supply
Board 30-08041, as shown in Figure 25.
Note: The plug must be properly oriented. Be sure that the tabs on the connector
are down.
Verify that line power is disconnected before proceeding.

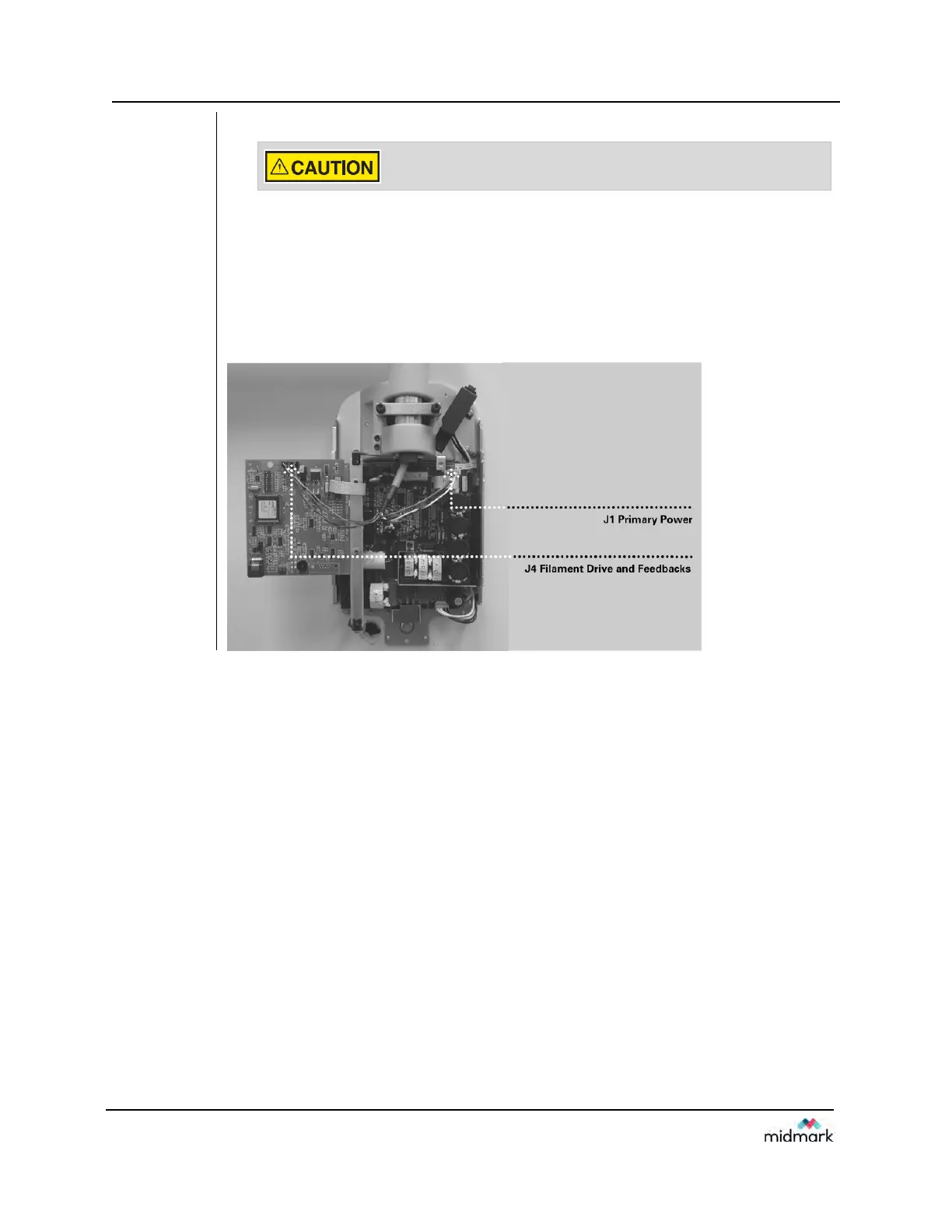

Figure 25
Connecting
the Horizontal
Arm Cables
to the Circuit
Boards
