Installation Procedures
Preva
40

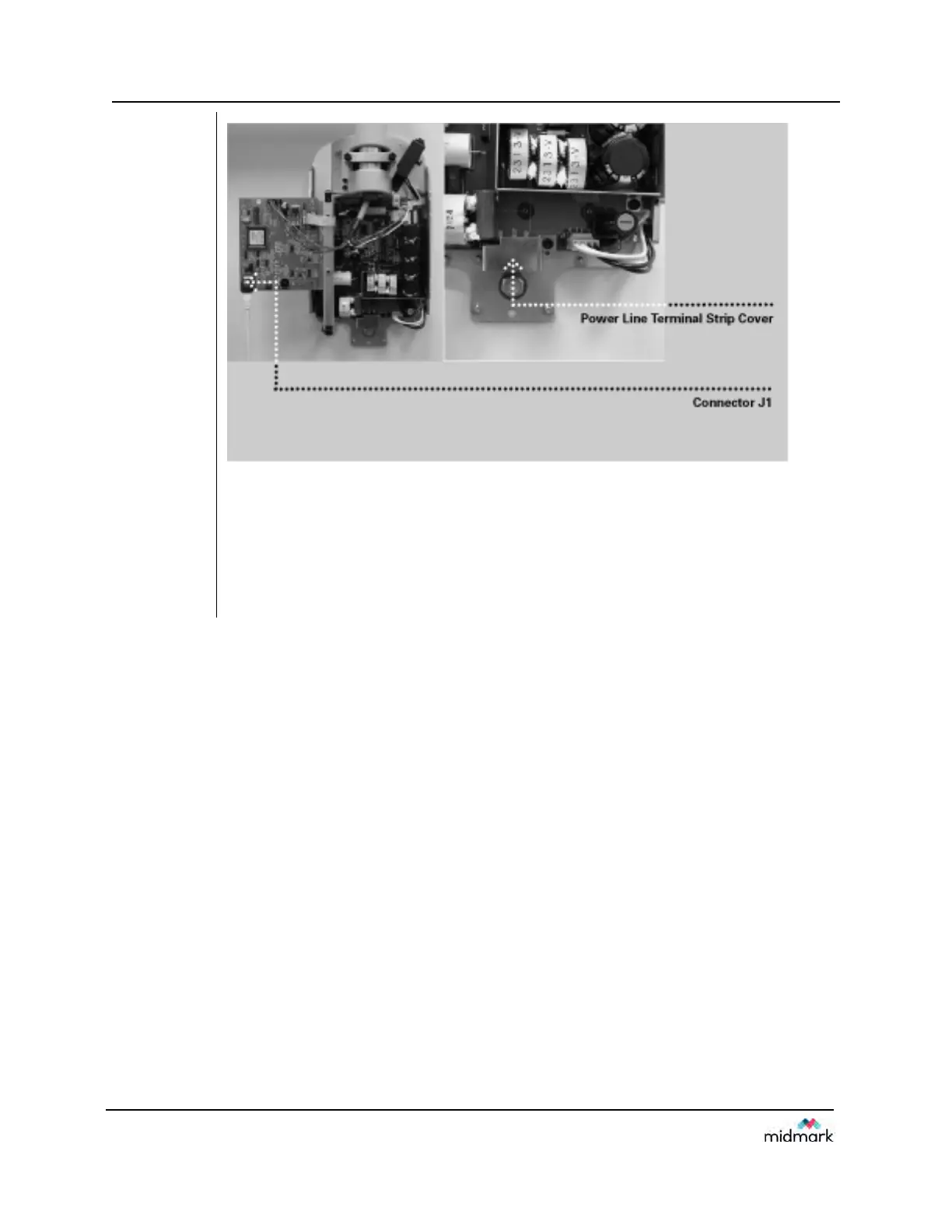

Figure 30
Power Line
Terminal Strip
Cover
Connecting
the Operator
Panel with
the 25 ft.
Cable
During initial powerup and verification, the Operator Panel is required. Connect the
Operator Panel with the 25 ft. [7.62 m] interconnect cable. Later you will connect the
Operator Panel in its final position for use.
1. Identify the Operator Panel and the 25 ft. [7.62 m] interconnect cable.
2. Plug the cable into the left socket at the base of the Operator Panel.
3. Plug the other end of the cable into connector J1 on the Power Supply Control
Board 30-08160, as shown in Figure 30.
