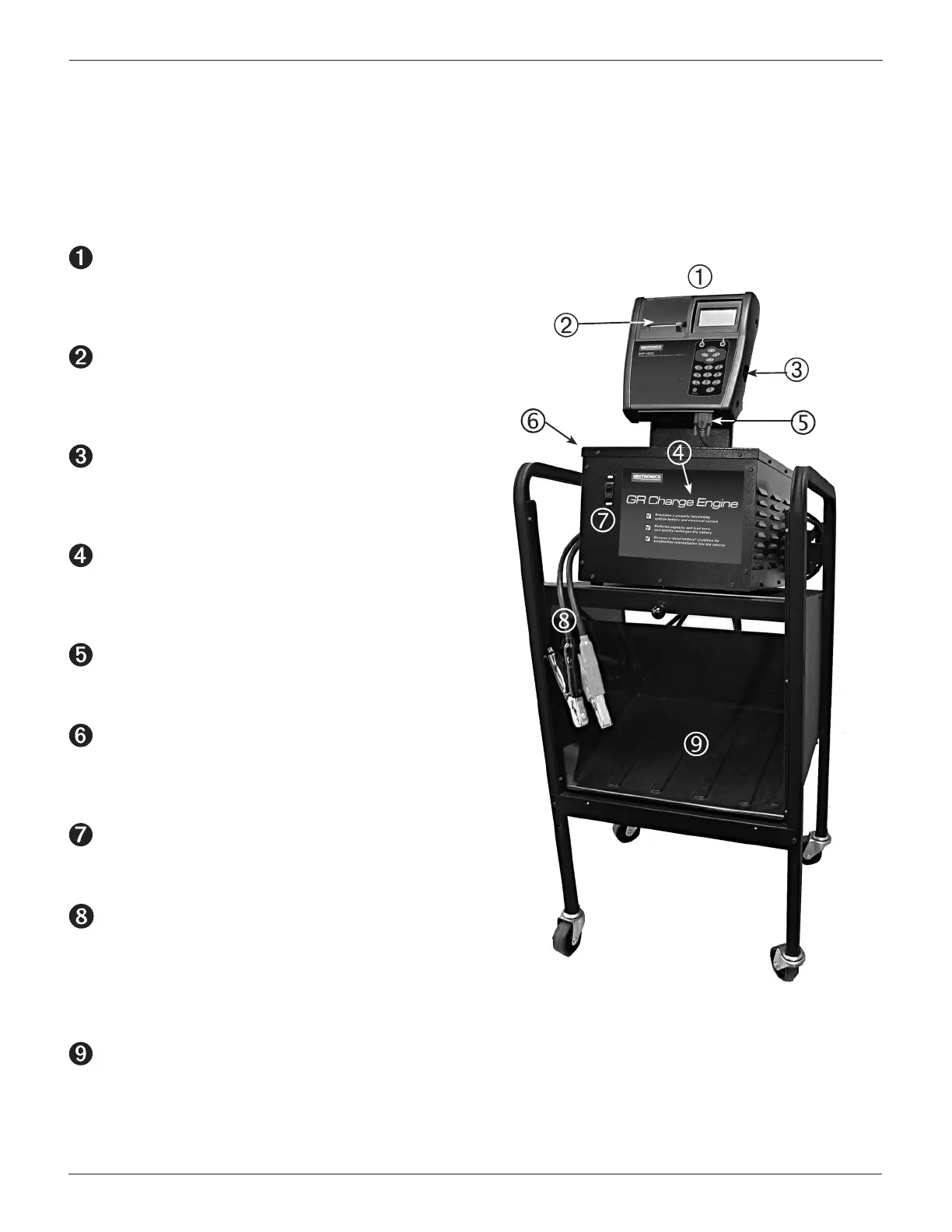

The controls to the Battery Diagnostic Station are accessible on the front of the Control Module and the GR Charge Engine.
KDSWHU2YHUYLH
Control Module
Backlit graphical display and keypad for data entry. Provides
battery analysis and controls the charge session.
Integrated Printer
Thermal printer prints test results in either English, French-
Canadian, or Spanish
Data Card Slot
For future upgrades via a data card. The slot contains a
plastic ller card for protection.
Status Light
Lights in conjunction with beeping alarm to indicate
transitions and warnings.
Serial Cable Connection: Control Module
Connects the control Module to GR Charge Engine
GR Charge Engine
Provides charge current when needed, which is regulated
by the Control Module.
ON/OFF Switch
Turns power on and o to the Battery Diagnostic Station.
Diagnostic Charger Cables and Clamps
Feed the cables into the Battery Charging Compartment
though the slot in rear of the cart before connecting the
clamps to the battery posts. For long term storage, place
the cables in the empty compartment.
Battery Charging Compartment
Enclosed area for charging a battery safely.
