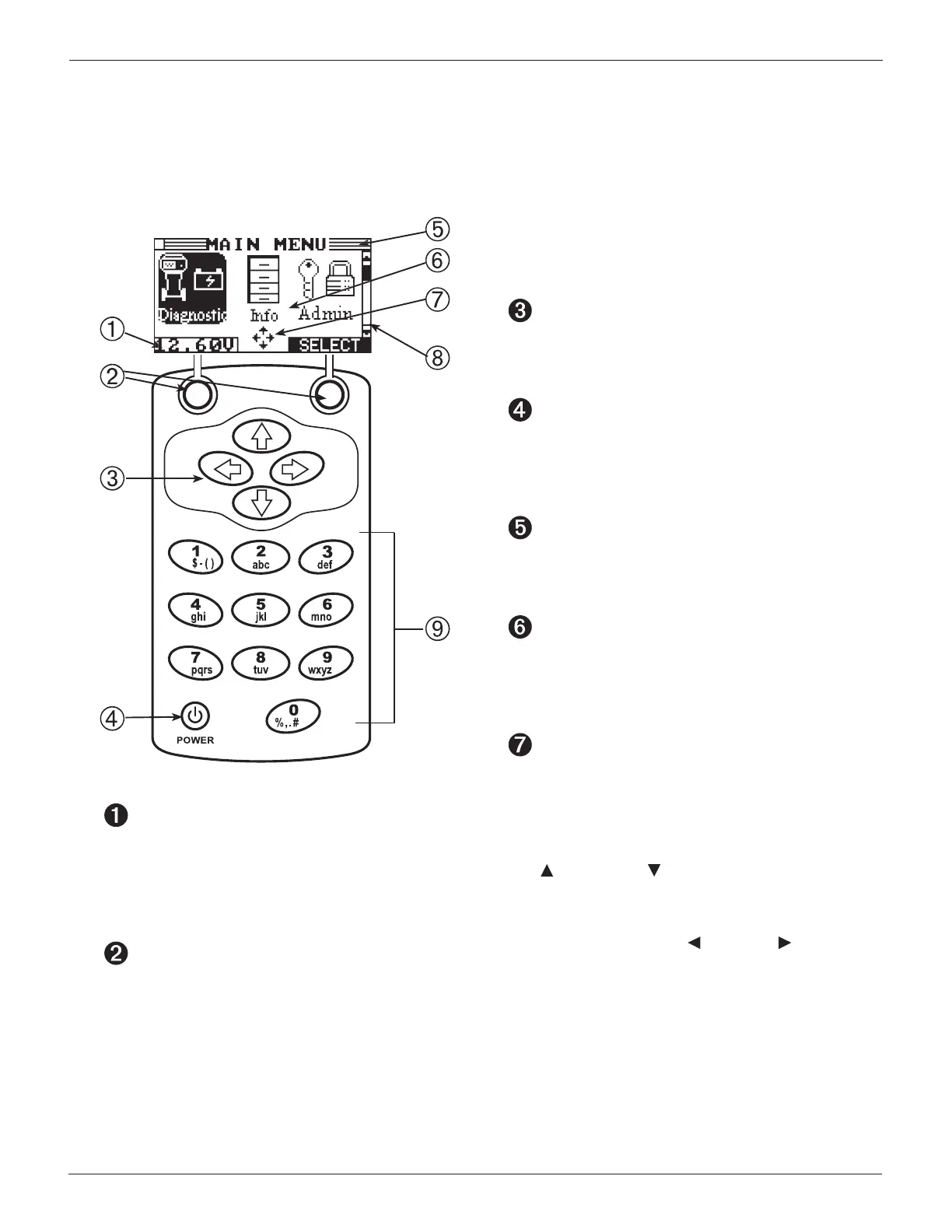

The Battery Diagnostic Station display and keypad work together to help you quickly nd and use the right tools at the right
time. The display also keeps you on track with on-screen navigation aids, directions and messages. The illustration shows how
the elements on the screen relate to the keypad.
Voltmeter
When you rst connect the cables to a battery
the Control Module functions as a voltmeter. The
voltage reading appears above the left soft key
until you start to use other menus or functions.
Soft Keys
Press the two soft keys linked to the bottom of
the screen to perform the functions displayed
above them. The functions change depending on
the menu or test process. So it may be helpful to
think of the words appearing above them as part
of the keys.
ARROW keys
Press the ARROW keys to scroll to numerical
values and move to menus and icons
POWER
Key
Press the POWER key to turn on the Battery
Diagnostic Station and stop (abort) a charging
session.
Title Bar
The title bar shows you the name of the current
menu, test tool, utility, or function.
Selection Area
The selection area below the Title Bar contains
selectable items or dialog boxes that display
information or require a response.
Menu Screen Arrows
When displayed in menu screens, the menu
screen arrows show you which ARROW key on
the keypad to press to display other icons or
screens. The Up and Down Menu Screen Arrows,
for example, indicate when to press the UP
( ) and DOWN ( ) ARROW keys to display the
screens above and below the current screen.
T
he Left and Right Menu Screen Arrows tell you
when to use the LEFT ( ) or RIGHT ( ) ARROW
keys to select an icon.
When displayed under a list of options, the menu
screen arrows show you which keypad arrow to
press to highlight a character or item in a list.
