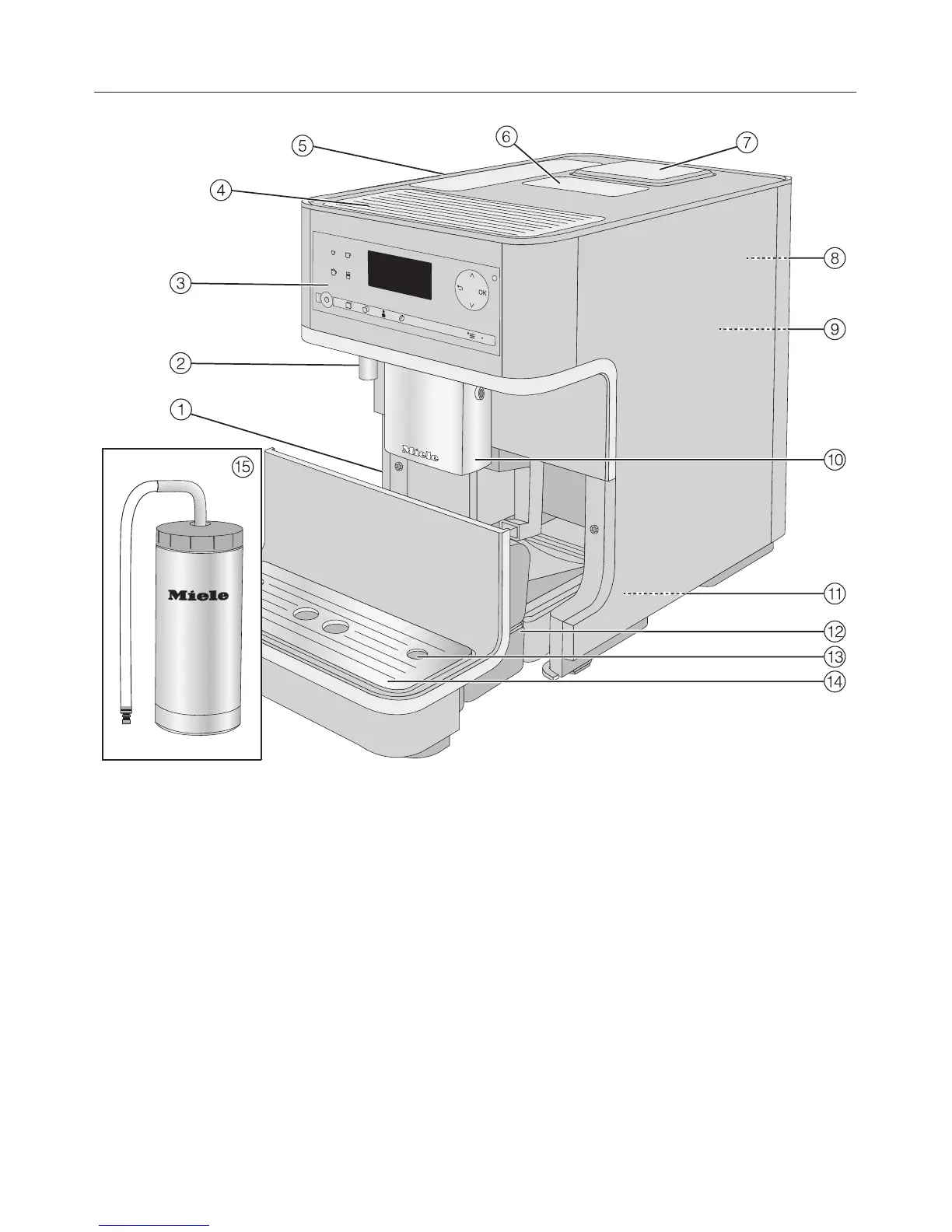

a Main switch
b Hot water spout
c Controls and display
d Cup heating
e Water container
f Ground coffee chute
g Coffee bean container
h Grinder setting
(behind the service panel)
i Brew unit (behind the service panel)
j Main dispenser with cappuccinatore
k Park position for milk pipework
(behind the service panel)
l Drip tray with lid and waste container
m Milk tube aperture
n Holder for drip tray cover and drip
tray cover
o Stainless steel milk container
Guide to the machine
10
