Safety distances
40
Safety distances to the sides
and back of the hob

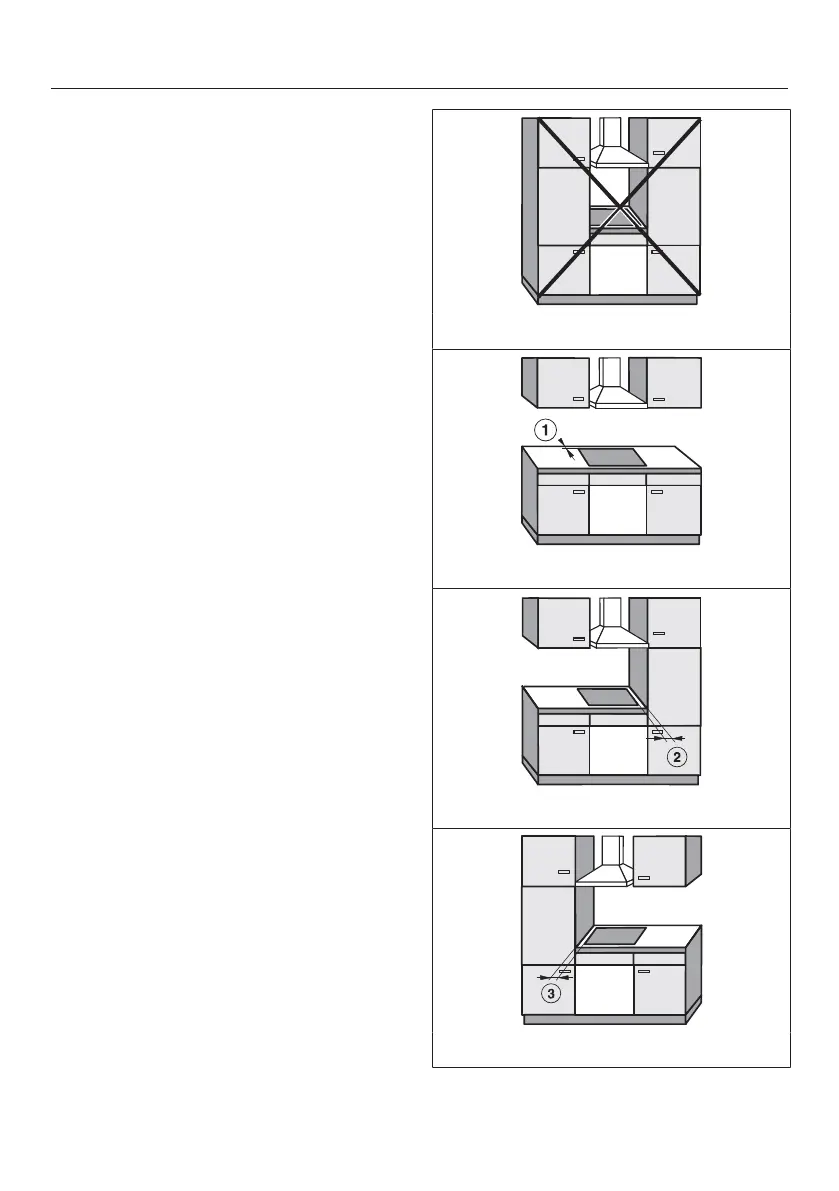

The ProLine elements may be installed
with a wall at the rear and a tall unit or
wall to one side (right or left) (see illus-
trations).
Minimum distance between the back
of the worktop cut-out and the rear
edge of the worktop:
50mm
Minimum distance between the
worktop cut-out and a tall unit or wall to
the right or left of it:
40mm CS 1212, CS 1212-1
CS 1221, CS 1221-1
CS 1234, CS 1234-1
CS 1223
CS 1222
50mm CS 1112
CS 1122
CS 1134
CS 1326
CS 1327
CS 1411
100mm CS 1012, CS 1012-1
CS 1012-2
150mm CS 1421
CS 1312
CS 1322
200mm CS 1034, CS 1034-1
250mm CS 1011, CS 1011-1
CS 1021, CS 1021-1
CS 1018 G
Not allowed
Highly recommended
Not recommended
Not recommended
