Miele CS 1212-1

Installing several ProLine elements
46

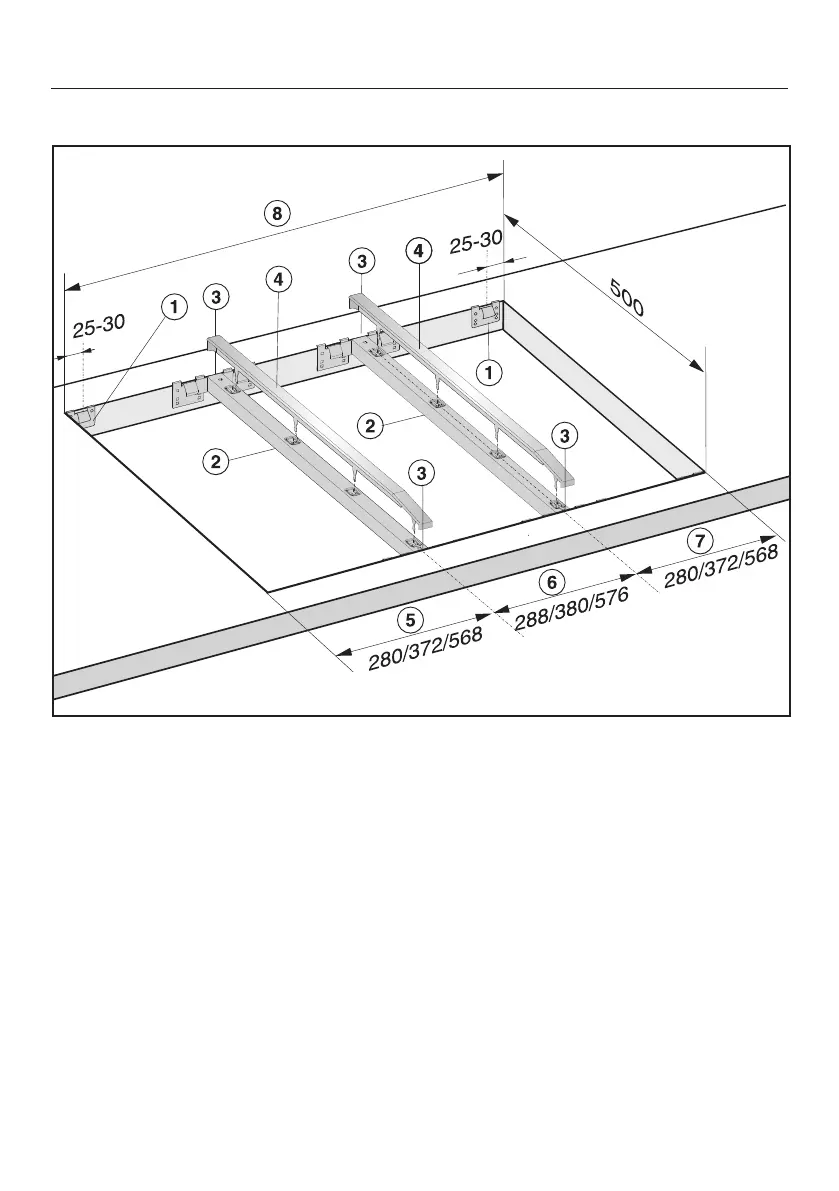

Example: 3 ProLine elements
a
Spring clamps
b
Spacer bars
c
Gap between spacer bars and worktop
d
Cover
e
ProLine element width less 8mm
f
ProLine element width
g
ProLine element width less 8mm
h
Worktop cut-out
