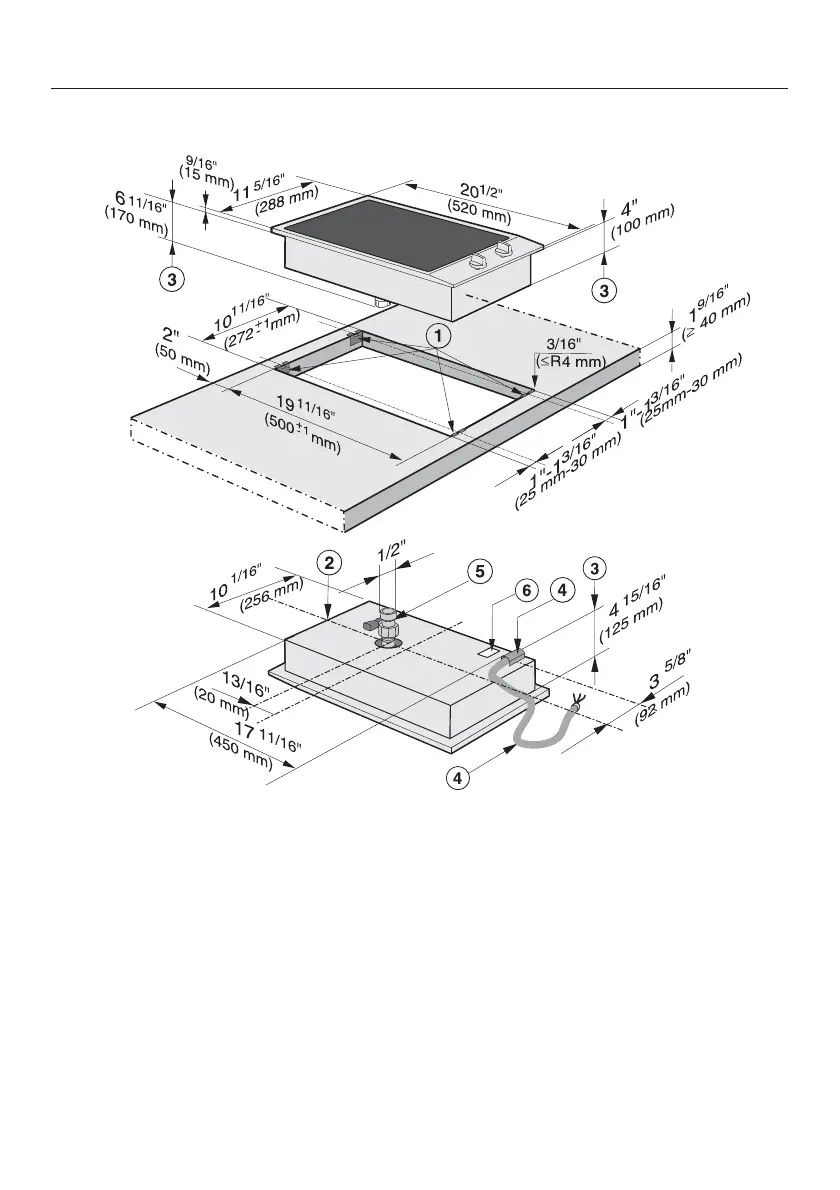

Installation dimensions CS 1312
a Spring clips
b Appliance front
c Installation height
d Power supply box with connection cable,L=783/4" (2000 mm)
e Drain valve
f Rating label
Installation
26
