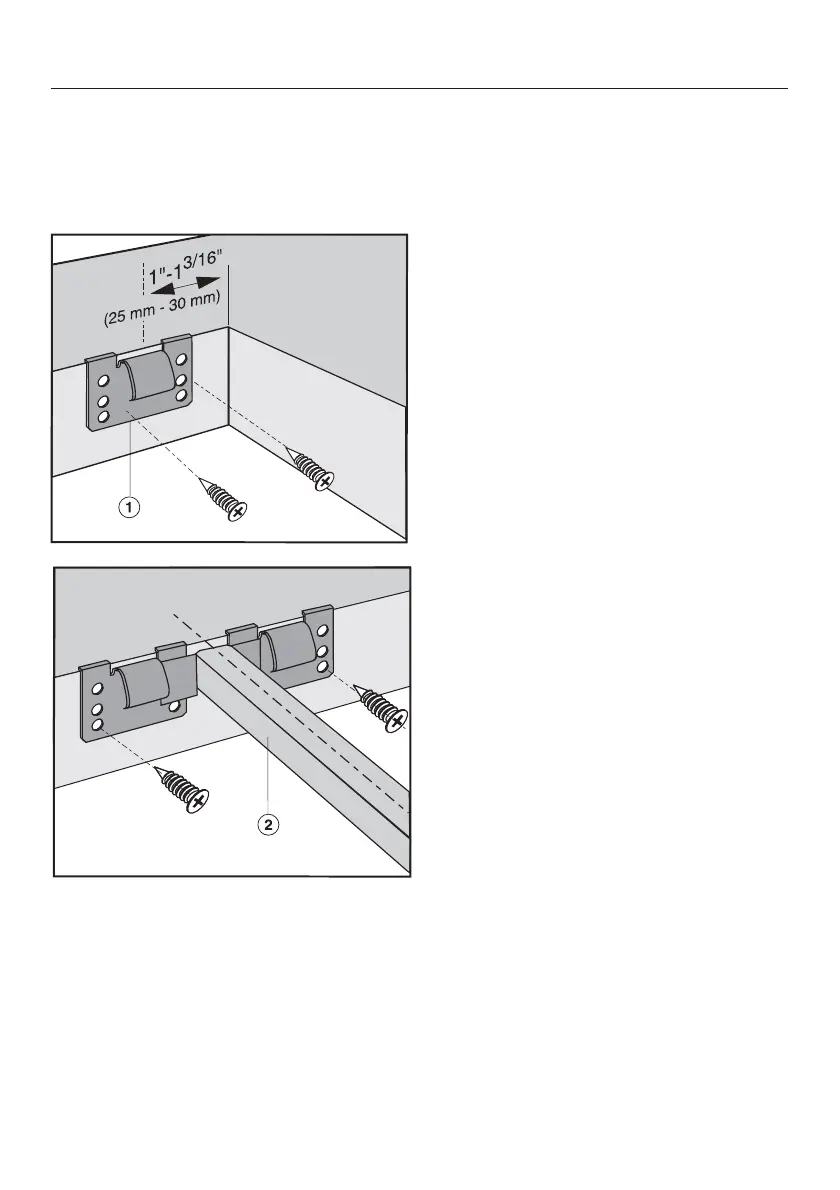

Attach the spring clips and
support bars
Wood or solid surface countertops
^
Place the supplied spring clips a
and the support bars b at the
marked positions as shown above,
by laying them on the upper edge of
the cut-out and then securing them
with the
1
/
8
" x 1" (3.5 x 25 mm) screws
(supplied).
Installation
32
