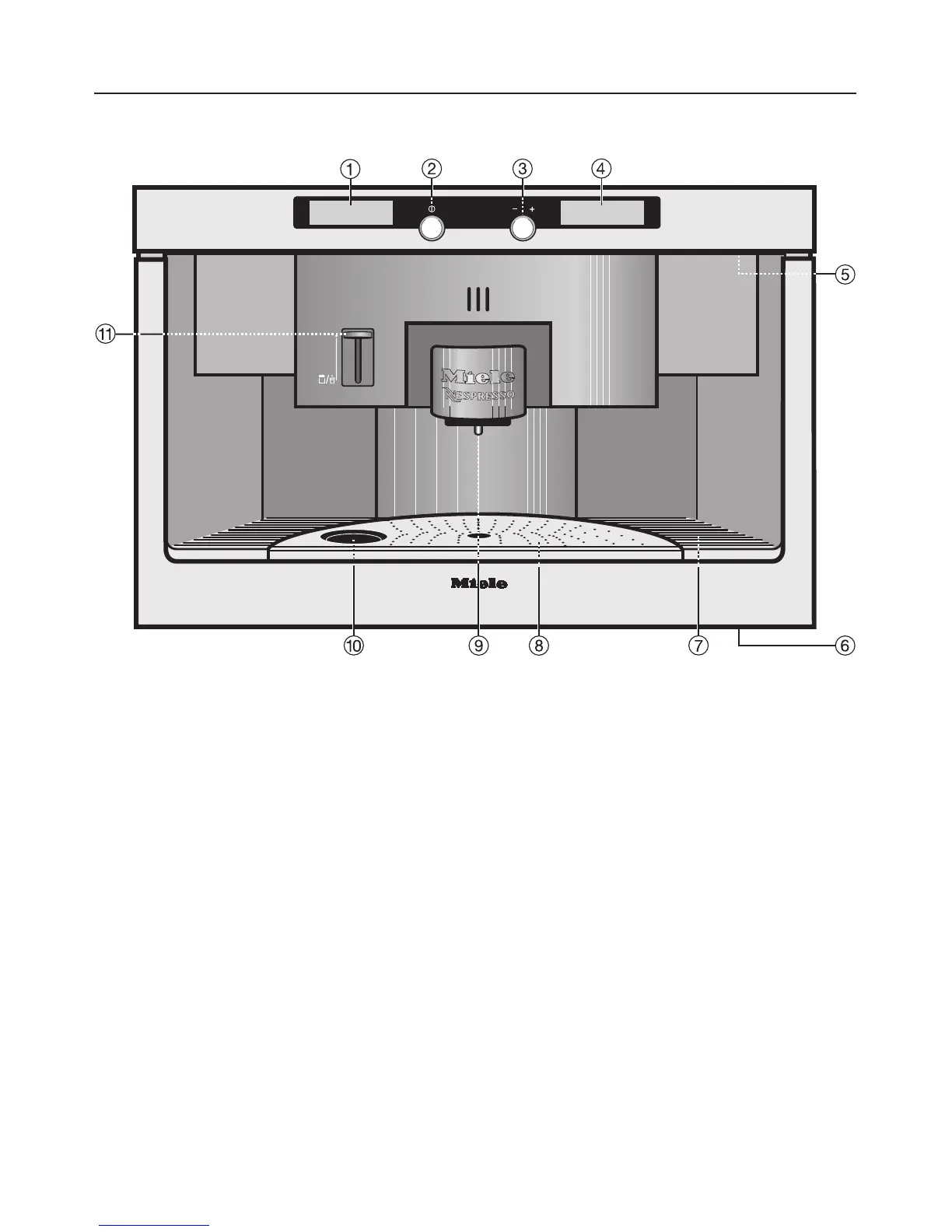

Front view
a Left display
b Left jog shuttle
Press this jog shuttle to turn the
machine on and off.
Turning it selects a desired
program, option or setting.
c Right jog shuttle
Press this jog shuttle:
– to start and stop the dispensing
of coffee or hot water.
– to select an option to alter or
customize a program.
– to save a setting into memory
when the machine is turned off.
Turning it selects a desired
program, option or a setting.
d Right display
e Upper door handle
(for installation at countertop height)
f Lower door handle
(for installation at a higher level,
e.g. upper cabinets)
g Plastic drip grill
h Metal drip catch
i Coffee dispenser
j Inset for Cappuccinatore
k Valve / Lever for steam and hot water
Guide to the machine
