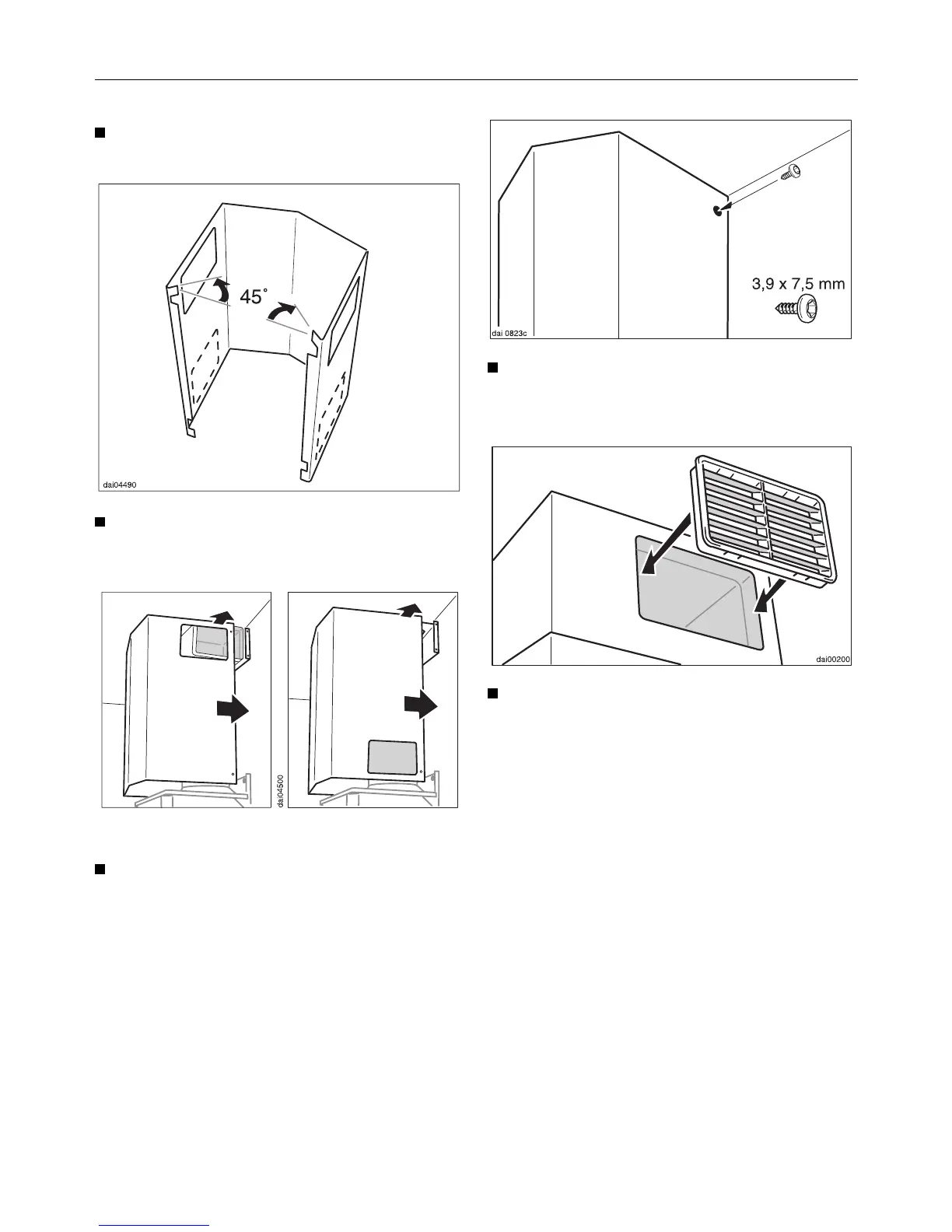

Before fitting the extension piece
remove the protective foil.
Bend the top hanging retainers ap-
prox. 45° inwards. This makes fitting
easier.
Recirculation Extraction
Pull the extension piece slightly
outwards and push over the upper
retaining plate.
For recirculation make sure that the
openings in the extension piece are po-
sitioned at the same height as the air
outlets in the directional unit of the fan
motor.
Screw the extension piece firmly to
the upper retaining plate at each
side with two 3.9 x 7.5 mm screws.
Only with recirculation mode: Fit the
recirculation grilles into the extension
piece and into the directional unit be-
hind so that the slats point down-
wards.
Installation
31
