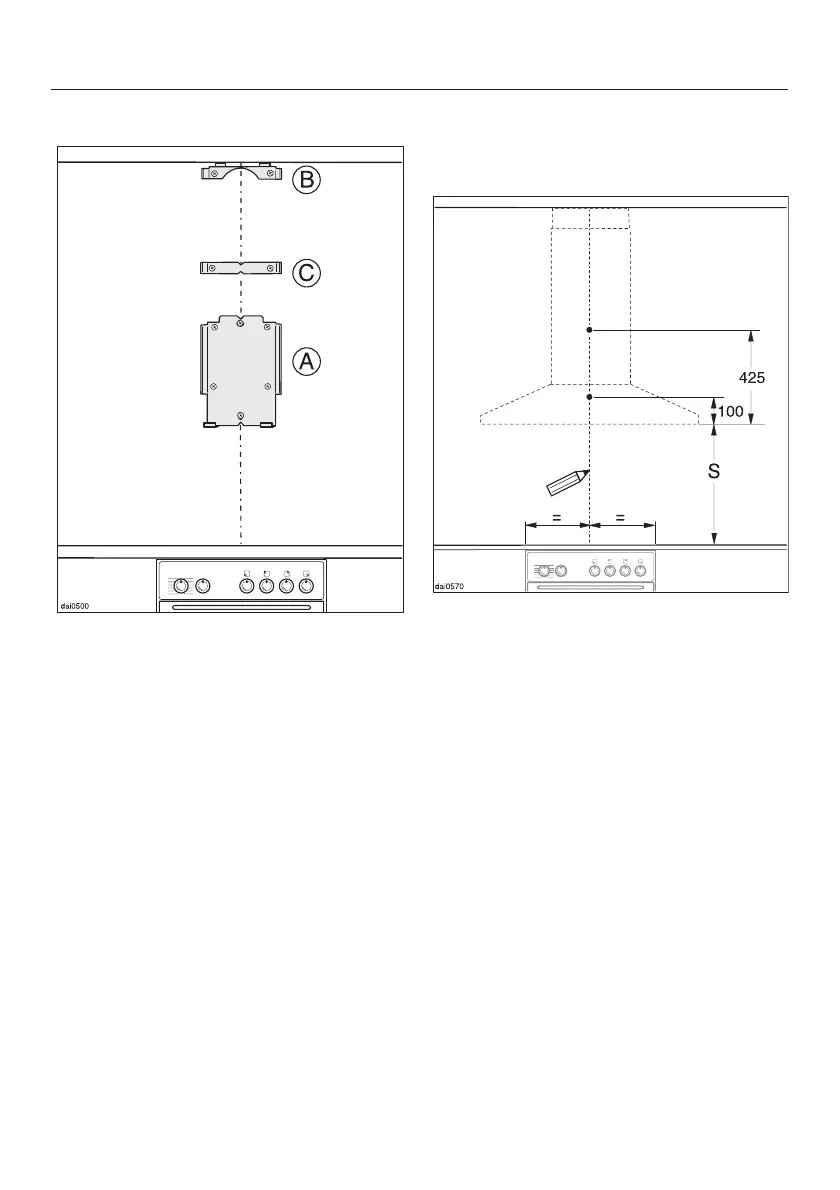

Retaining plates
The ventilation system will be mounted
to the wall through the use of retaining
plates. Plate A is installed first,
followed by plate B. Plate C should only
be used if the distance between plate A
and plate B is greater than 14
3
/
8
"
(365 mm).
Attaching the retaining plates
to the wall
^ Before fitting the retaining plate draw
a vertical line centrally above the
cooktop on the rear wall.
^
Mark measurement S from the
cooktop surface upwards (see
"Appliance dimensions"). This marks
the height of the lower rim of the
hood.
^
DA 217-2:
Drill a
1
/
8
" (3 mm) hole on the center
line
11
/
16
" (18 mm) above the height
marked S.
^
DA 219-2:
Drill two
1
/
8
" (3 mm) holes,
11
/
16
"
(18 mm) above the height marked S
and 9
13
/
16
" (250 mm) right and left of
the center line.
