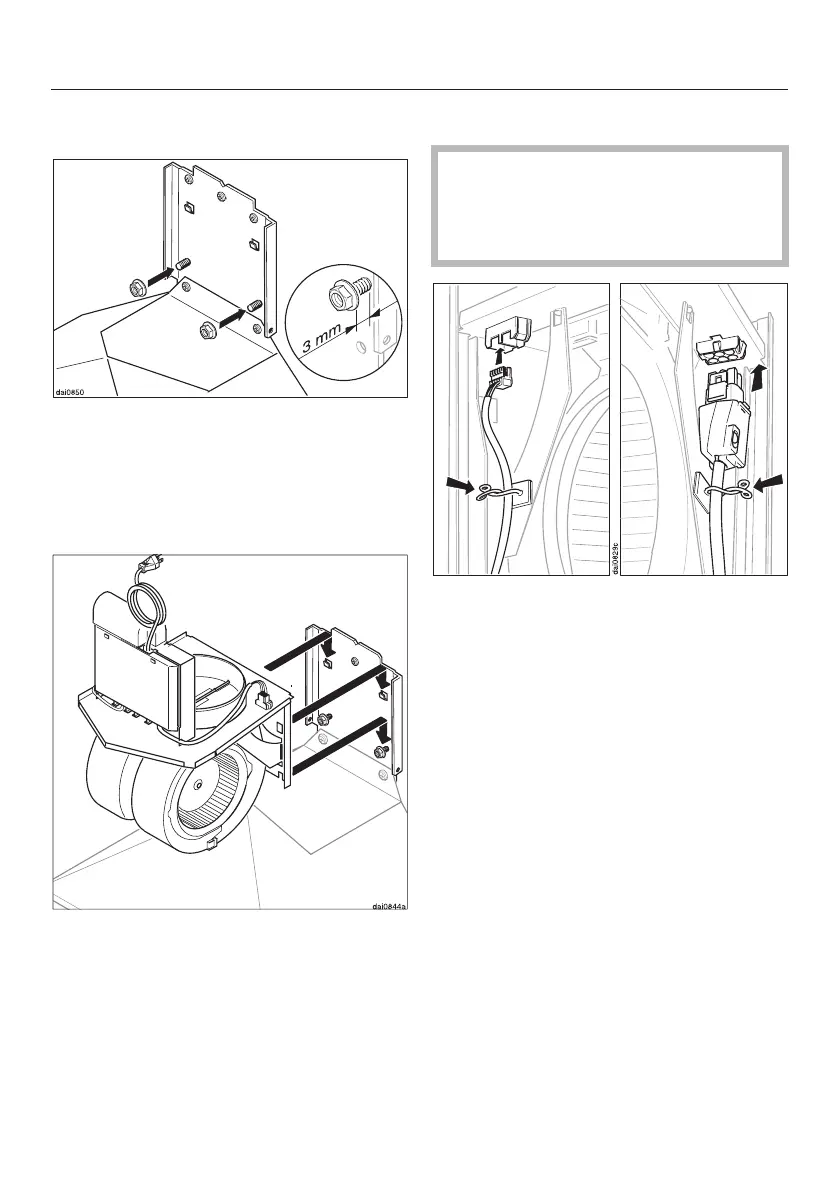

Attaching the motor assembly
^
First loosely screw the two locking
nuts onto the threaded bolts on
retaining plate A.
Leave a gap of
1
/
8
" (3 mm) for
hanging the motor on.
^
Fit the motor assembly onto the
hooks on retaining plate A and slide
down behind the nuts.
^
Tighten the nuts.
Electrical connection
Before connecting the appliance
read the "Warning and Safety
Instructions" and the "Electrical data"
sections.
^ Plug the 2 connectors on the canopy
into the corresponding receptacles
left and right of the motor assembly.
Insert the 4 prong connector into the
receptacle left of the motor
assembly.
Insert the 6 prong connector into the
receptacle right of the motor
assembly.
^
Secure the cords with the ties, as
shown above.
^
Plug in the power cord.
Installation
35
