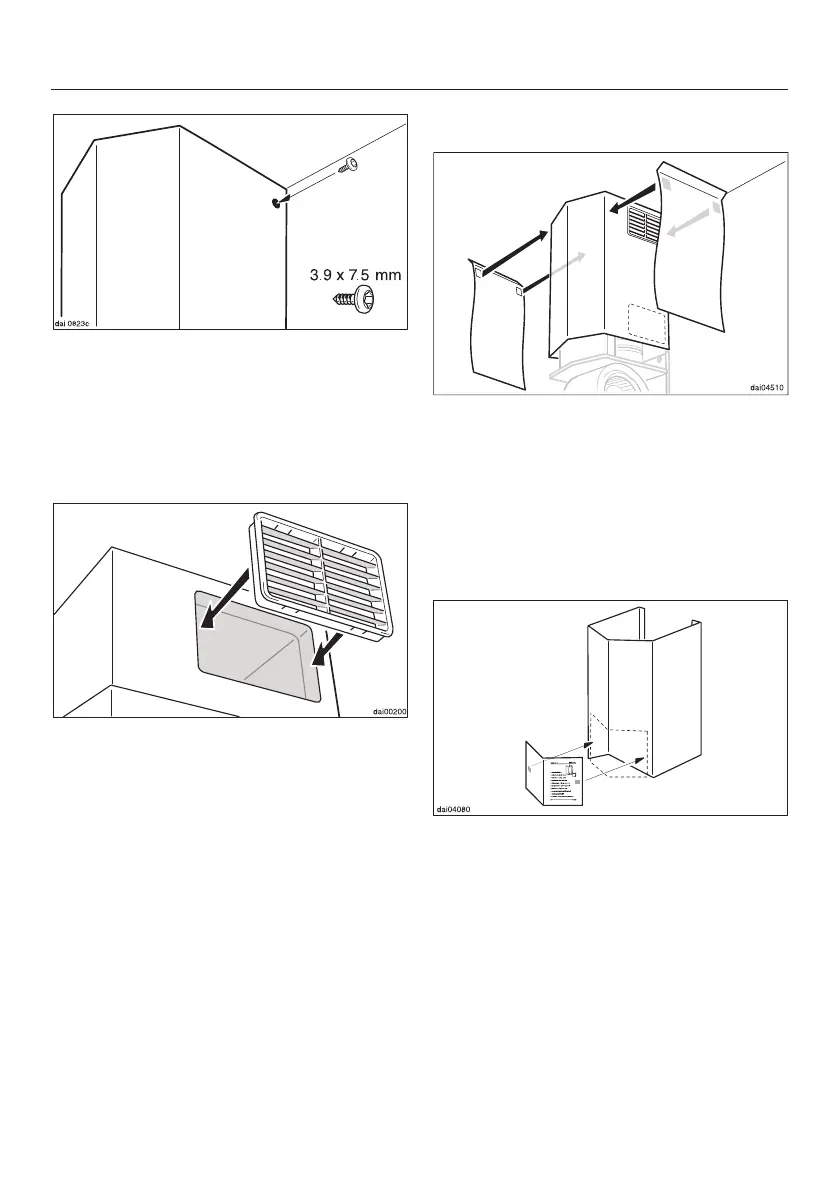

Screw the extension piece firmly to
the upper retaining plate using two
3.9 x 7.5 mm screws.
^
Cover the screws with the supplied
cap covers.
^
Only for recirculation:
With the slats pointing downwards,
install the recirculation vents through
the extension piece and into the
diverter.
Attaching the chimney
^
Fold the protective shield at the top.
^
Remove the adhesive backing from
the shield.
^ Stick the shield to the chimney
extension so that it is smooth and
flush with the bottom.
^
Remove the protective foil from the
chimney.
^
Remove the backing from the
adhesive strips on the protective
shield.
^
Attach the protective shield to the
front of the chimney so that it
protrudes slightly below the bottom
edge.
