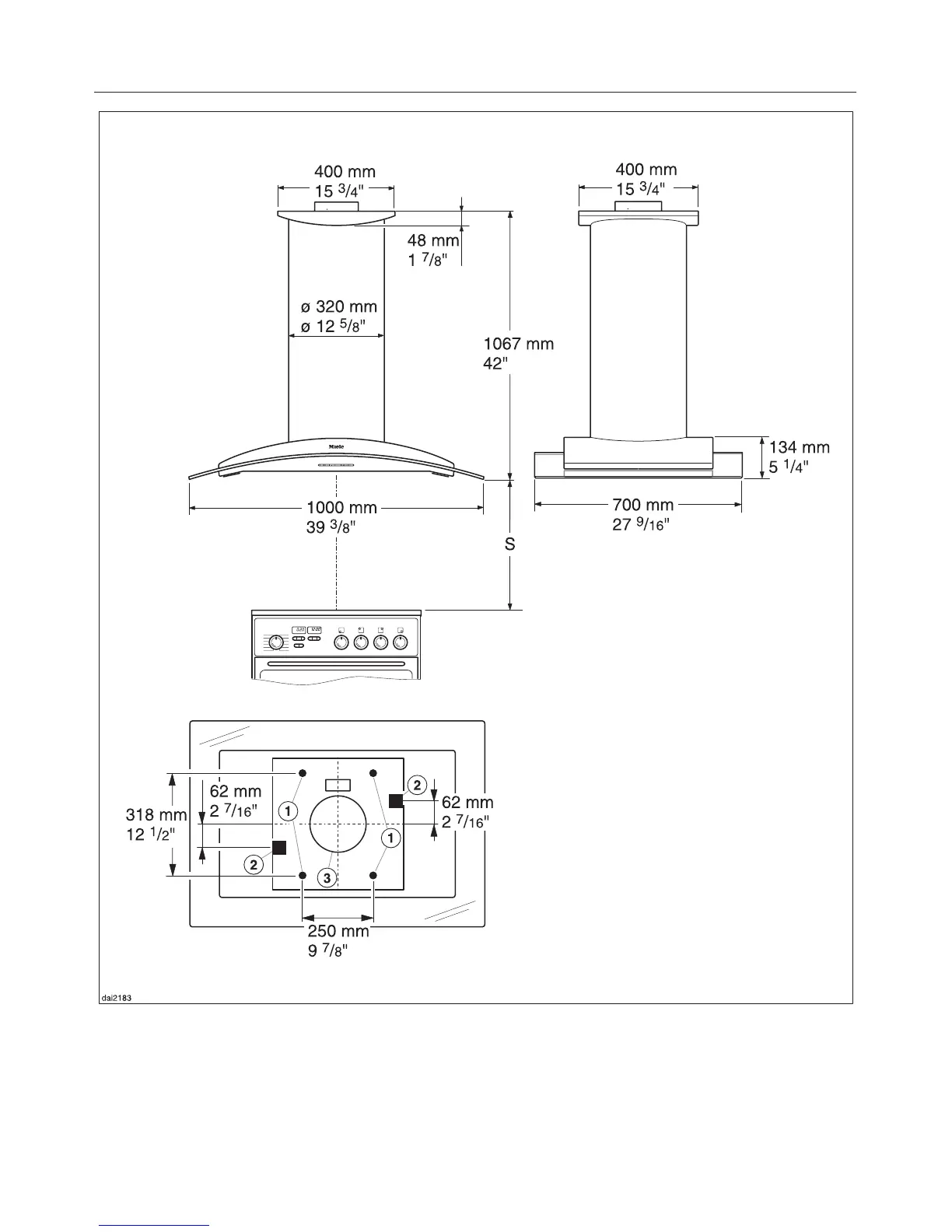

a Mounting bolt holes
b Alternative positions to feed through the power cord
c Exhaust connection 6" (150 mm) diameter
Appliance dimensions
24
